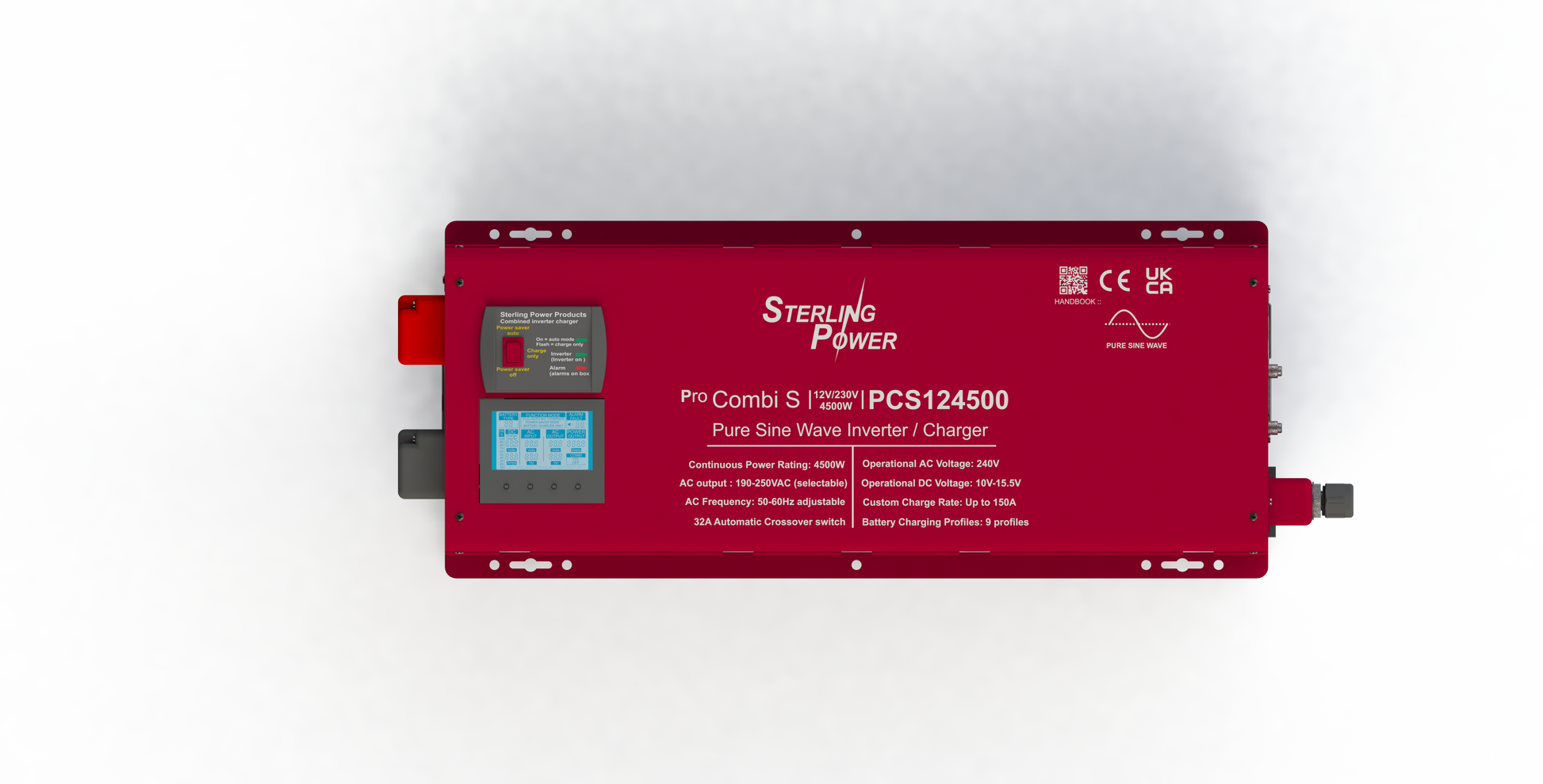

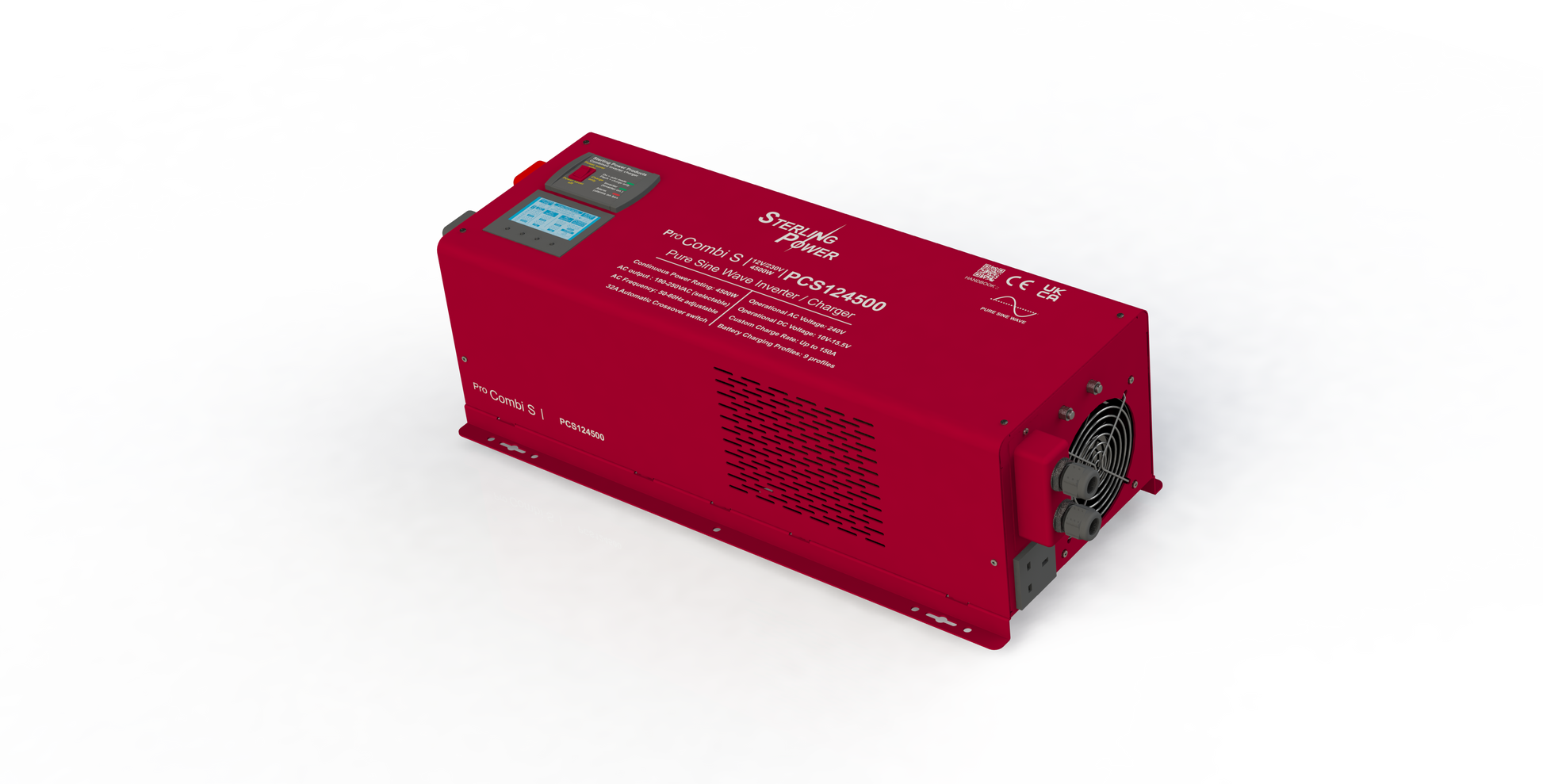

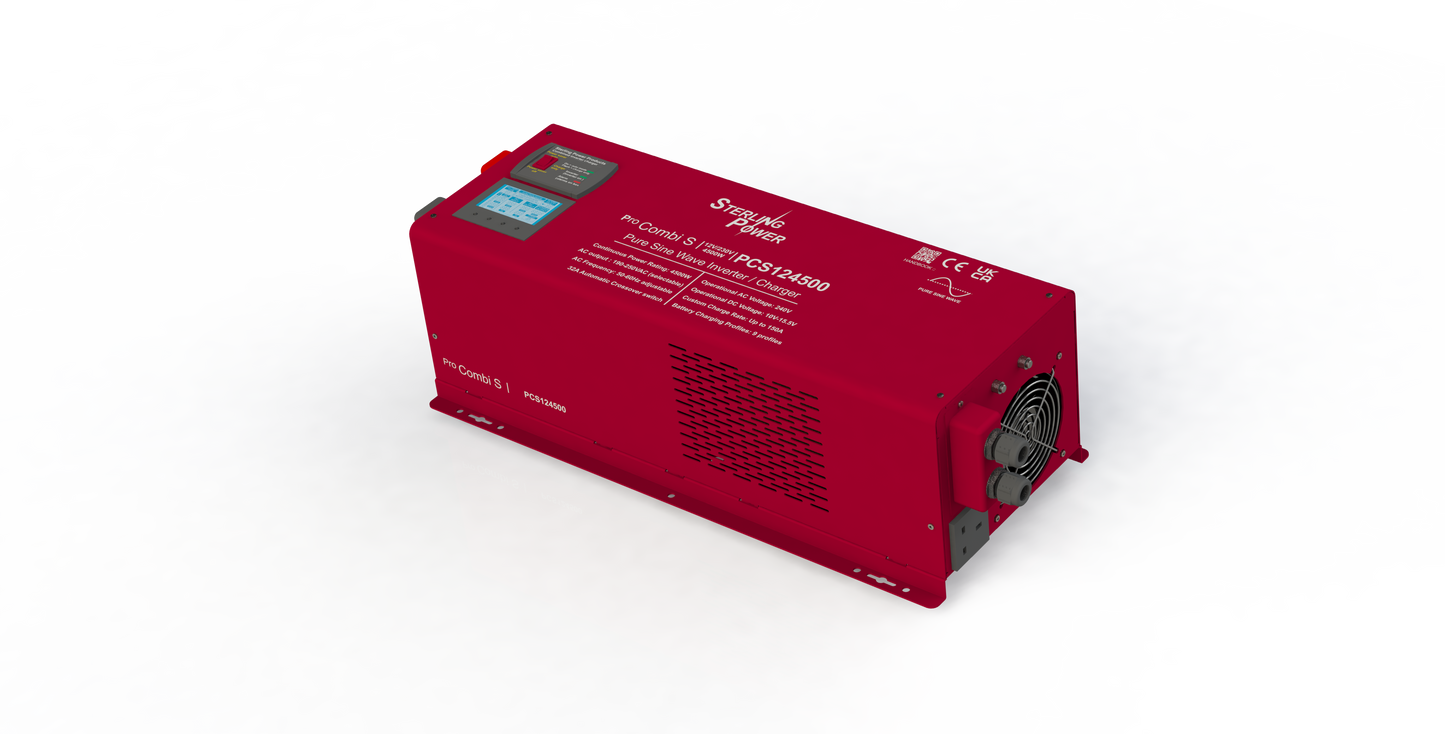

Pro Combi S - Pure Sine Wave inverter / charger
12V 4500W
Now comes with a screen and an additional remote control
- 16second power saving ‘fridge mode’ brings the standby current down to 200-450mA (model dependent).
- Real time higher continuous power ratings with substantial overload capabilities. Allowing for more useable power.
- We now include 2x remote controls. One to remain on the Combi and an additional one for ease of access locations.
- Higher charging current 90A-160A (model dependant).
- Adjustable charging current.
- Adjustable low voltage trip - down to 9.5VDC.
- Ideal for lithium batteries due to power supply mode
- Adjustable AC output voltage from 208-240VAC + 50 | 60hz adjustable.
- Nice display screen giving out live power readouts for information and diagnostic purposes.

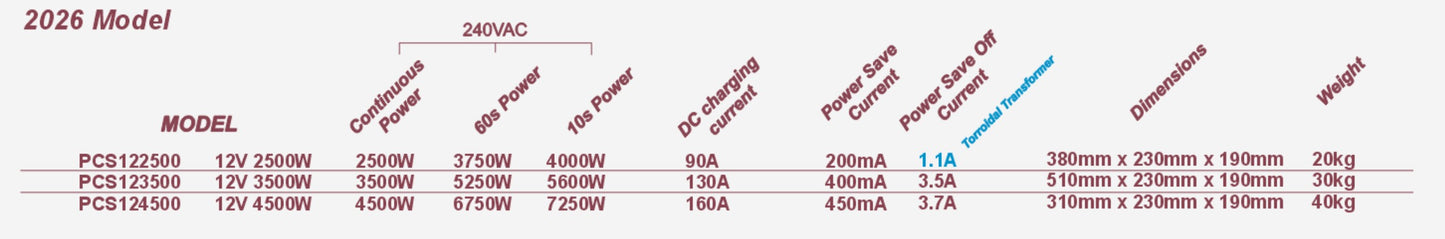

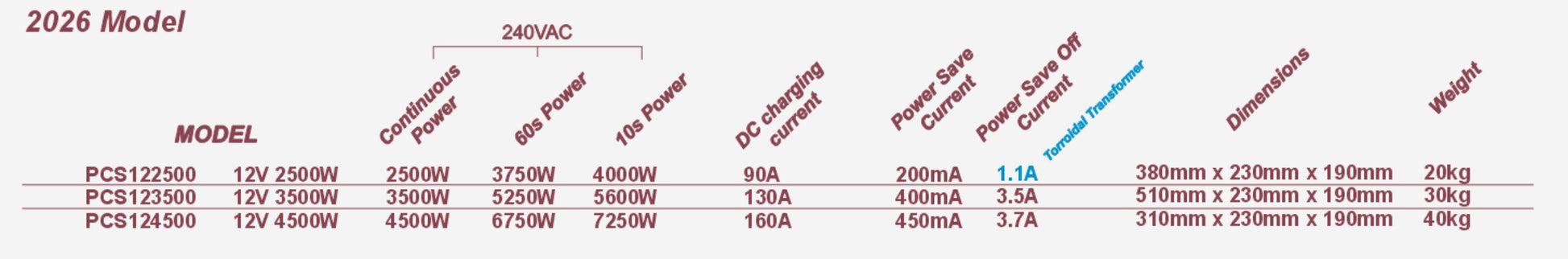

| General Specs | |
| Part Number | PCS124500 |
| Wave Form | Pure Sine |
| DC voltage nominal | 12V |
| Continuous Output rating | 4500W |
| 60s Overload rating (110%- 150%) | 4950W - 6750W |
| 10s Overload rating (~160%) | 7200W |
| Battery Charger rating | 160A |
| Battery Charger adjustability | 20% increments |
| Default AC voltage | 240VAC |
| Selectable AC Voltages | 208-240VAC |
| AC input freqeuncy | 50Hz / 60Hz auto detect |
| Min AC input | 180VAC |
| Max AC input | 270VAC |
| Operating frequency | 40-70Hz |
| Transfer switch rating | 40A |
| Transfer switch time | 10ms |
| Bypass without battery | yes |
| Low battery voltage protection | 9.5V |
| Overvoltage protection | 15.7V |
| Operates without battery | Yes |
| Power Saver Function | Yes |
| Normal ON standby current | 3.7A |
| Power Saver Consumption | 450mA |
| Power Saver AC cycling frequency | 16seconds |
| AC power to operate in Power Saver | 55W+ |
| Power Factor | 0.9-0.99 |
| Nominal Combi overall efficiency | ~85% |
| Weight | 40kg |
