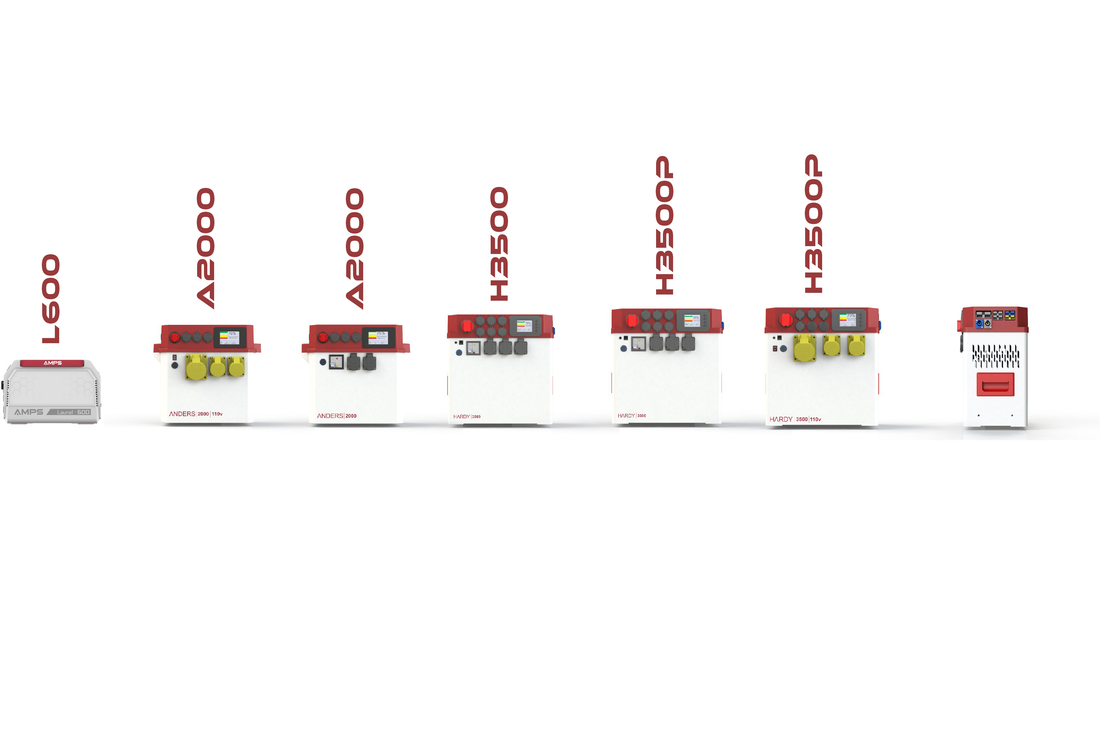

Laurel | 600 - Available Now
Sterling Power Products
Anders | 2000 Portable Power Supply - Available now
Sterling Power Products
Anders | 2000 Portable Power Supply - Available now
Sterling Power Products
Hardy | 3500 Portable Power Supply (All New)
Sterling Power Products
Hardy | 3500 Portable Power Supply (All New)
Sterling Power Products
Hardy | 3500 Portable Power Supply (110VAC -50Hz / 60hz switchable)
RB48100 | RB48150 - 48V 100Ah or 150Ah Stack / RACK Batteries 16S 5.12kWh | 7.68kWh
RB48100 | RB48150 - 48V 100Ah | 150Ah Stack Batteries
400W heater built in
- Product AMPS Part number: RB48100 | RB48150
- Lithium Iron Phosphate - LiFePO4
- Capacity: 51.2V 100Ah | 51.2V 150Ah
- JBD UP16S010-L16S-100A BMS | JBD UP16S010-L16S-200A BMS
- Energy capacity: 5.12kWh | 7.68kWh
- Cell Type: 3.2V LiFePO4 prismatic cells
- Typical Voltage: 51.2VDC
- Working Voltage Range: 44.8V-57.6V
- Dynamic voltage difference between cells ≤50mv
- Maximum Discharging Current: 100A | 200A
- Maximum Charging Current: 100A | 200A
- BMS Communication: CAN, RS485, RS232
- BMS Active Equalization
- SOC Range: 5% - 100%
- Useable Capacity: 5.12kWh | 7.68kWh
- Lifespan: 8000-10000 cycles
- Working Temperature Range
- Charging, 0DegC - 45DegC.
- Discharging, -10DegC - 45DegC
- 455mm x 435mm x 180mm (view gallery images for more specific dimensions)
- Weight: 50kg (RB48100) - 73kg (RB48150)
- Both RB48100 and RB48150 are idenitical in dimensions, looks and functionality.
- The differences are purely in capacity and weight
instructions
Capacity
The Modern Vehicle Solution
More power. Less problems.

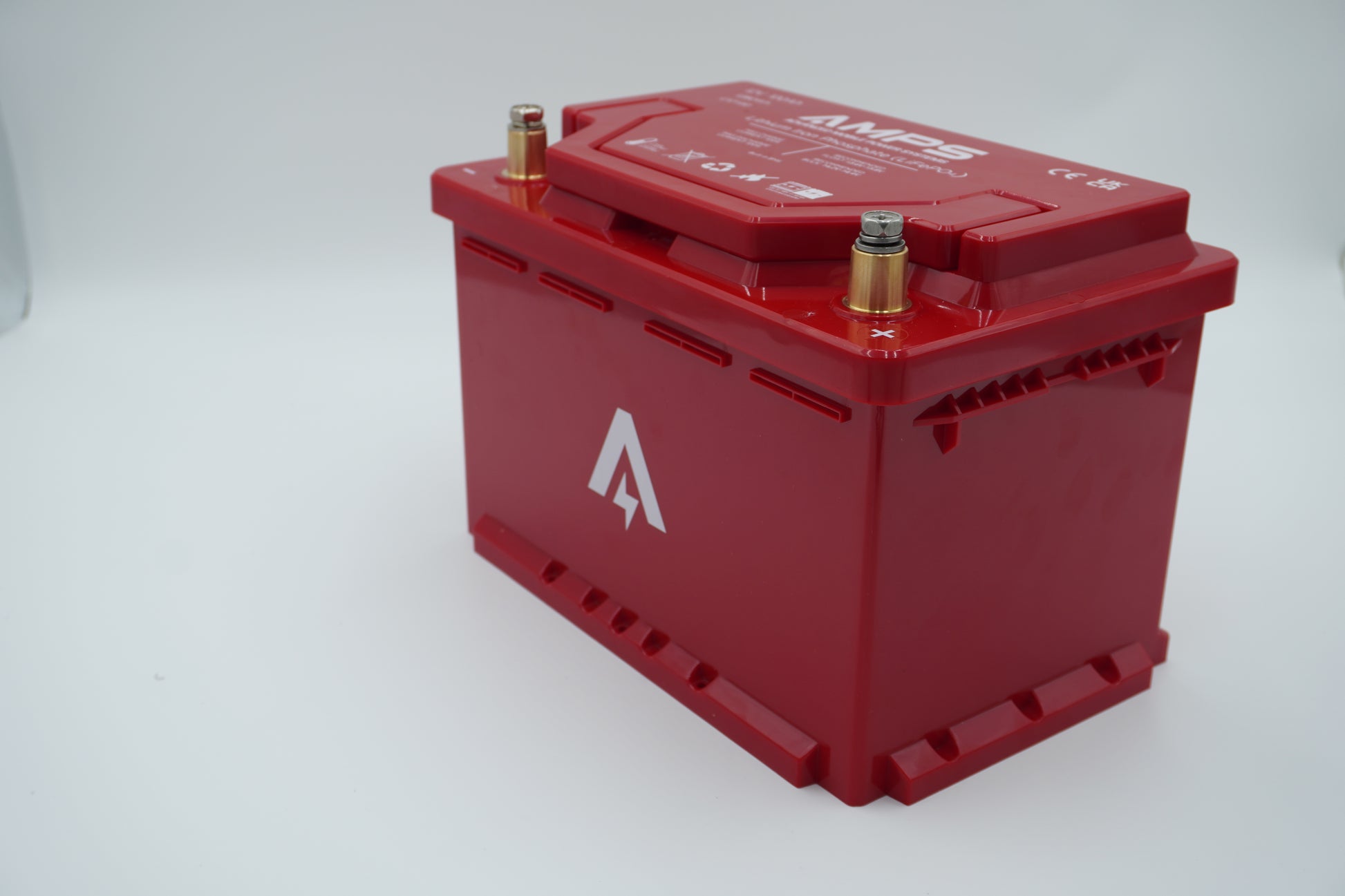

12V 105Ah LiFePO4 - Lithium Iron Phosphate Battery L12100
12V 105Ah LiFePO4 - Lithium Iron Phosphate Battery L12100 - 1344Wh
| Battery power | Weight of battery (kg) | Dimension of battery (cm) |
| 12V 105Ah | 8.0 | 26.0L x 21.0W x 16.0H |
5 years warranty
general specs:
- LiFePO4 12V (nominal) 105Ah 25 deg C Lithium Deep cycle
- 1344Wh
- Maximum continuous charge rate (1C) = 100A
- Maximum continuous discharge rate (1C) =100A
- Controlled overload with charge and discharge - for instantaneous charges / loads
- Battery must be safely charged within units parameters
- Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
- Cut off voltage 11V / cutoff temperature 60 deg C
- Charge Curve style CC/CV
- Operational temperature 0Deg to 60 deg C (adjustable)
- internal consumption: 0.1mA

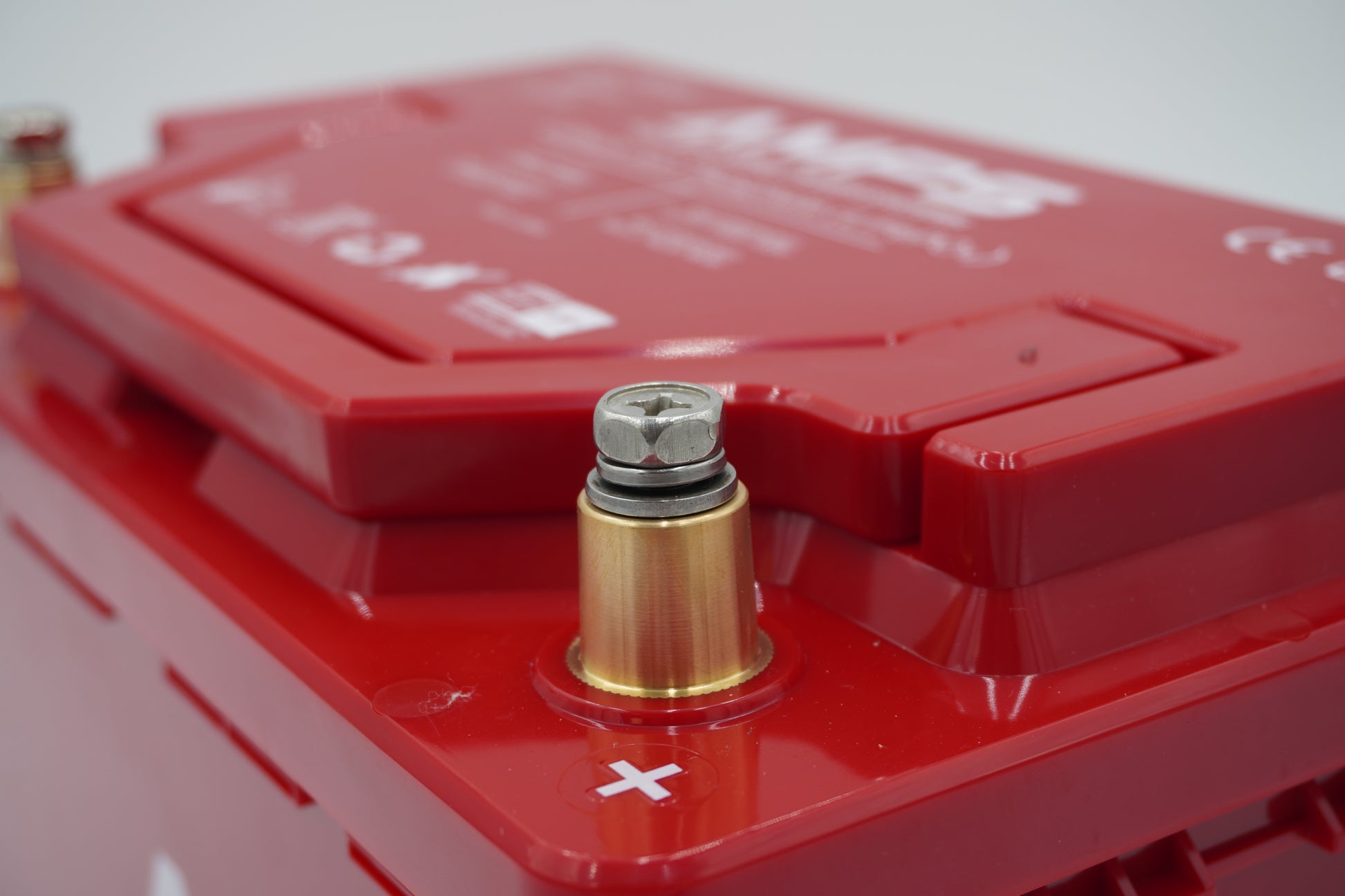

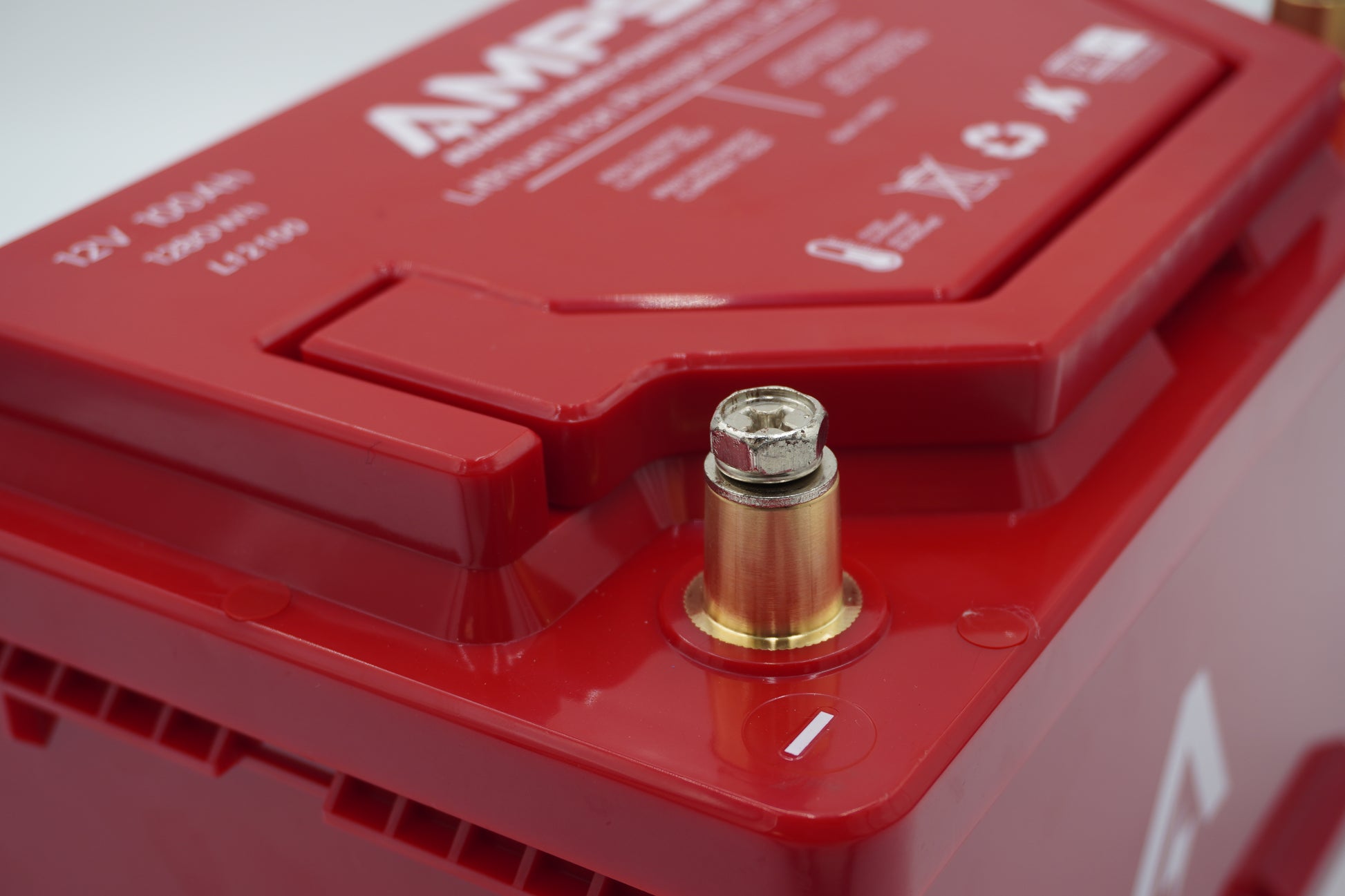

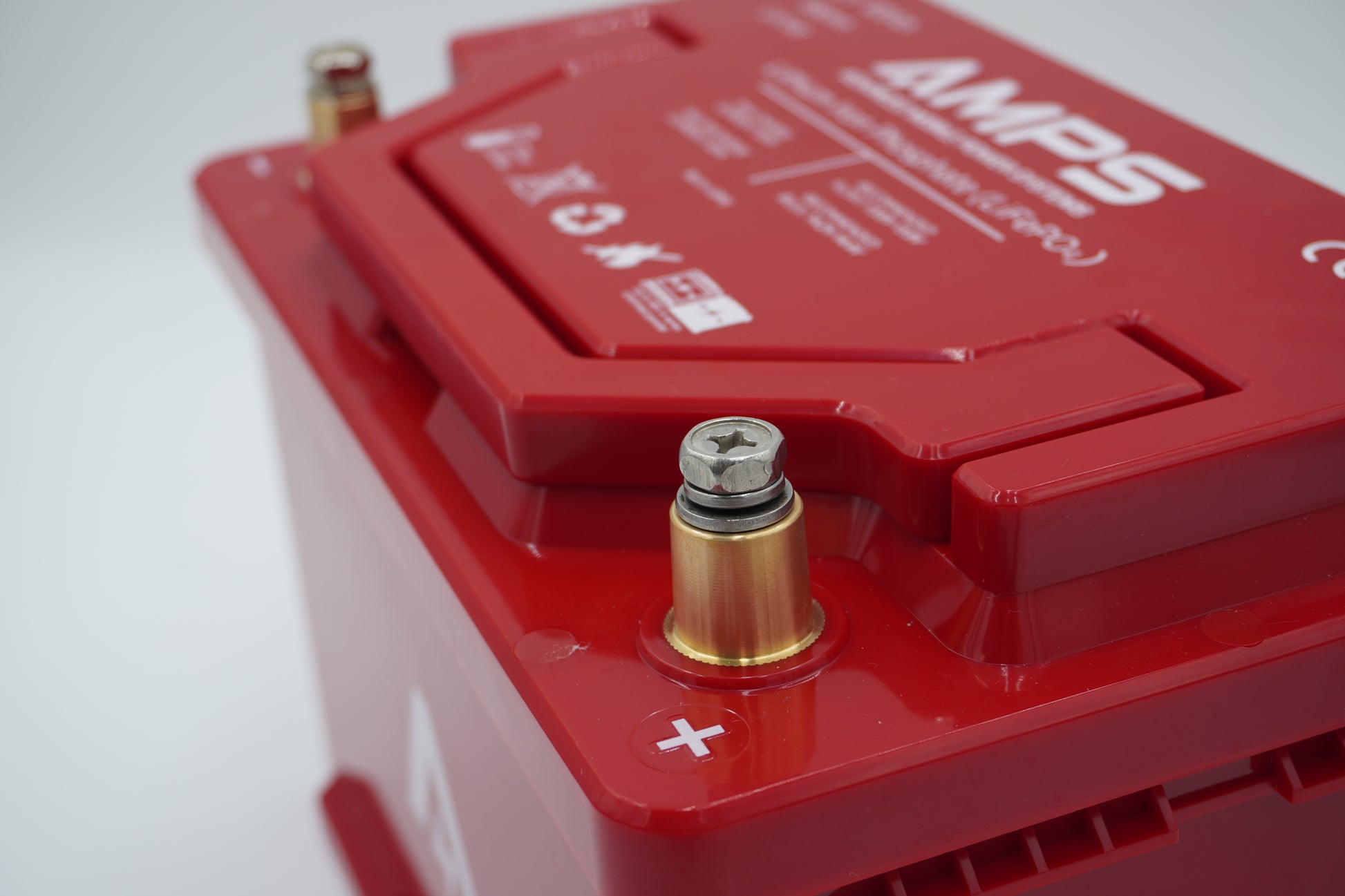

- 8mm ring terminal battery studs / washer with T1 DIN style - best of both
- Can be put in series 12V | 24V | 36V | 48V
- 0 Deg C charge circuit disconnect
- -20Deg C discharge circuit disconnect
- 260mm x 170mm x 210mm Compact Size
Limited five year warranty from date of purchase.
