Sterling Power Products // AMPS

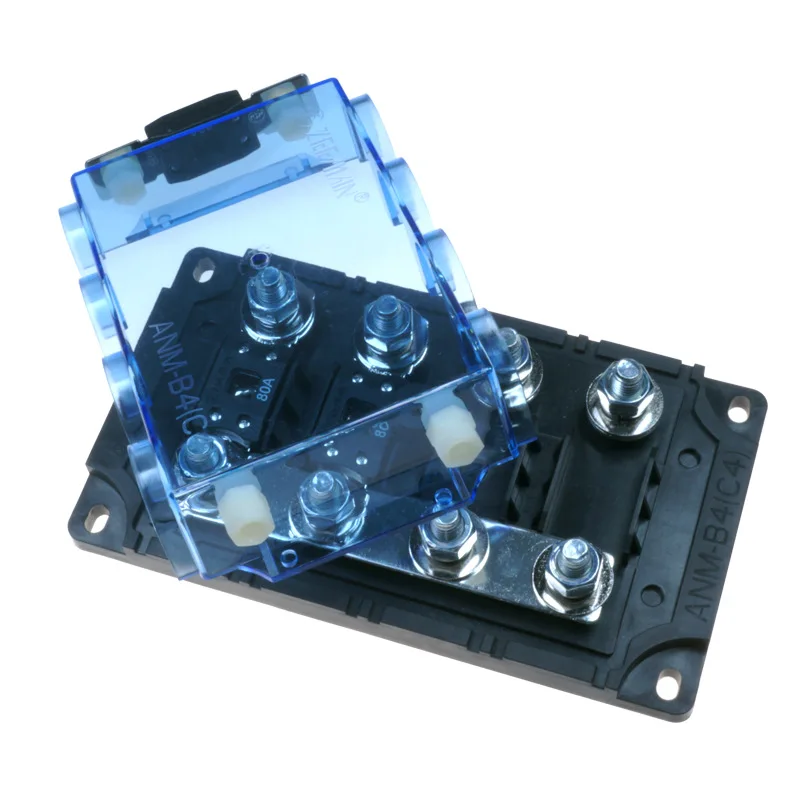

MEGA Fuses and holder
PRODUCT RANGE
Regular price
£3.60 GBP
Tax included. Shipping calculated at checkout.
SKU: MEGA80

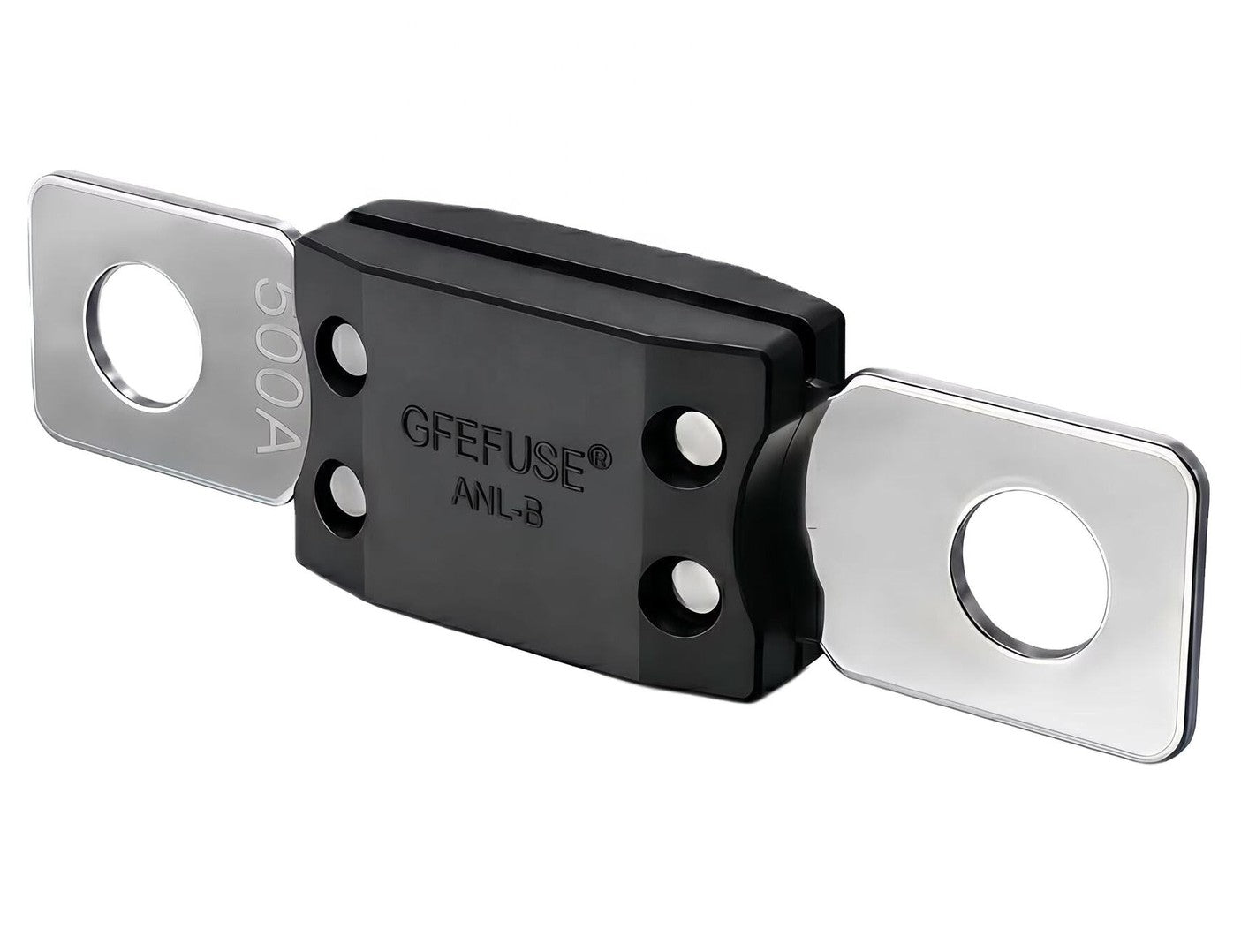

MEGA fuse
Overview
The MEGA fuse is a high-current, bolt-down fuse designed for robust overcurrent protection in automotive, marine, and electronic power supply systems. Featuring a durable thermoplastic housing and high-conductivity copper alloy terminals, this medium-sized fuse ensures reliable performance in demanding DC environments.
Technical Specifications
Electrical Characteristics
| Parameter | Value |
| Current Rating | 80A – 300A |
| Rated Voltage | rated for systems up to 80VDC |
| Application | Electronic & electrical power supplies, automotive systems |
Mechanical & Material Properties
| Property | Specification |
| Type / Style | MEGA |
| Mounting Type | Bolt-down type |
| Terminal Material | Copper Alloy, galvanized (gal) |
| Housing Material | Thermoplastic |
| Package / Case Material | PPS (Polyphenylene sulfide) |
| Size Classification | Medium |
Physical Dimensions
| Dimension | Measurement |
| Fuse Body Dimensions | 68.7mm x 19mm x 10mm |
| Single Gross Weight | 0.020 kg (20g) |
