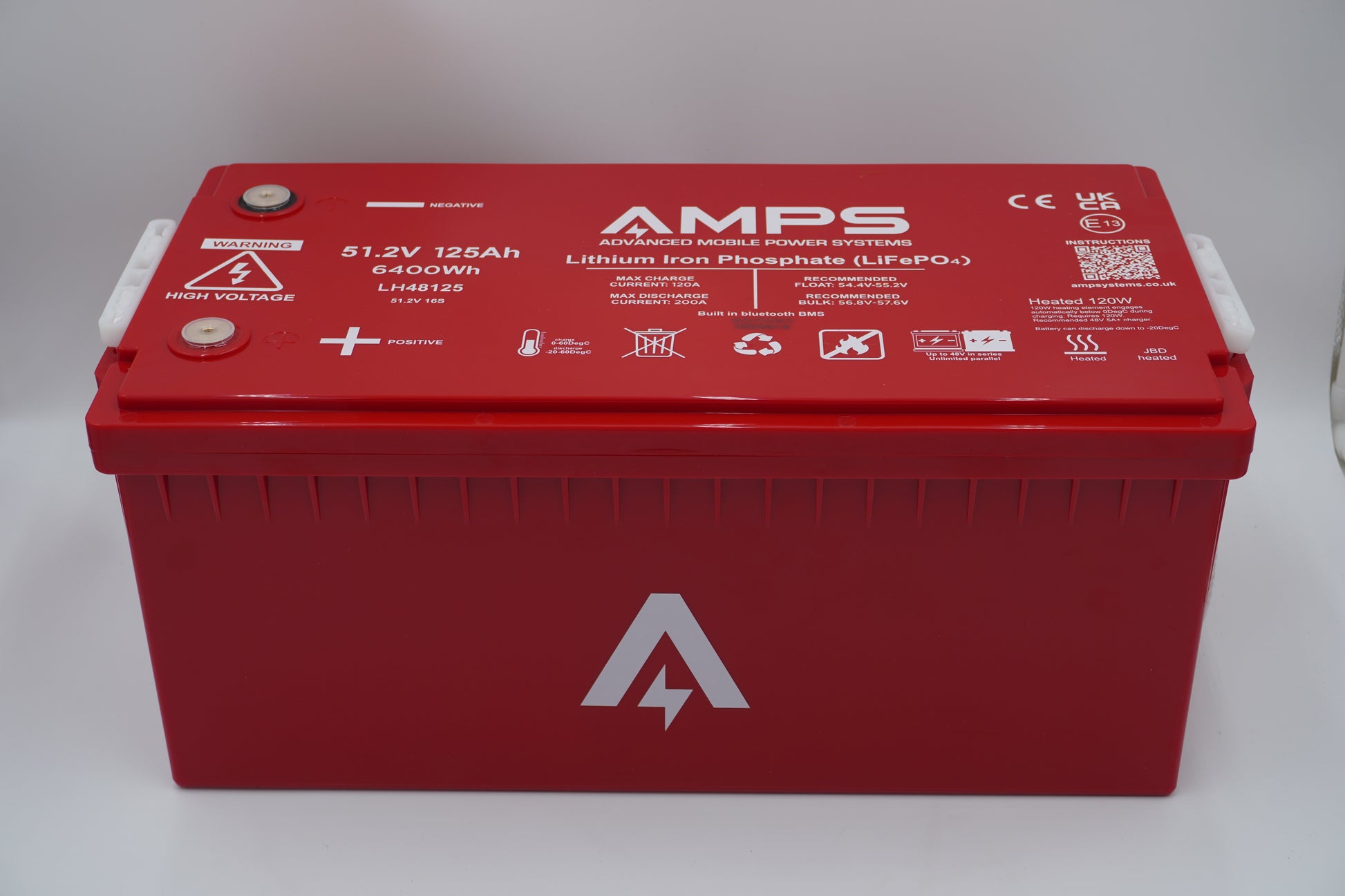

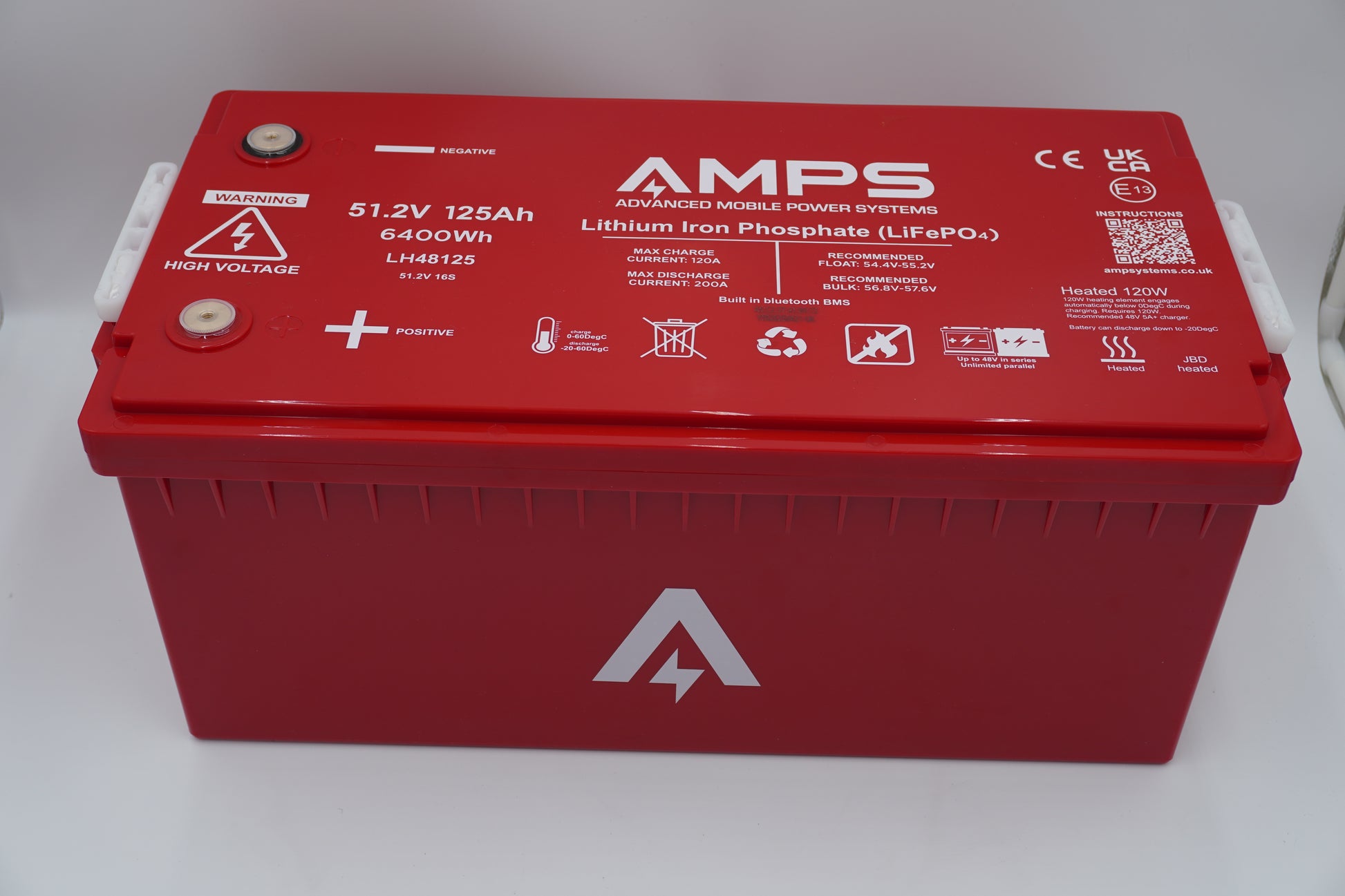

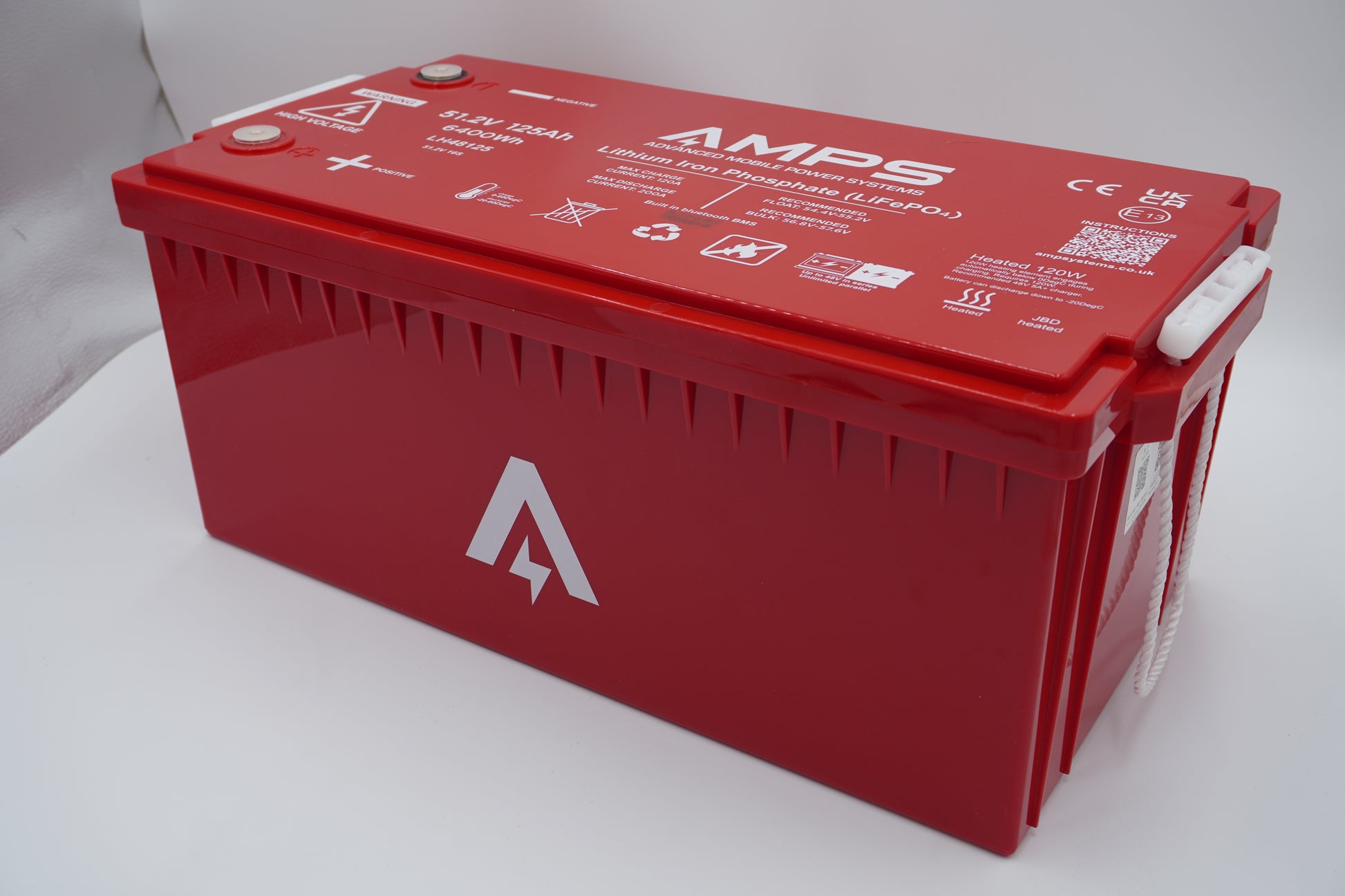

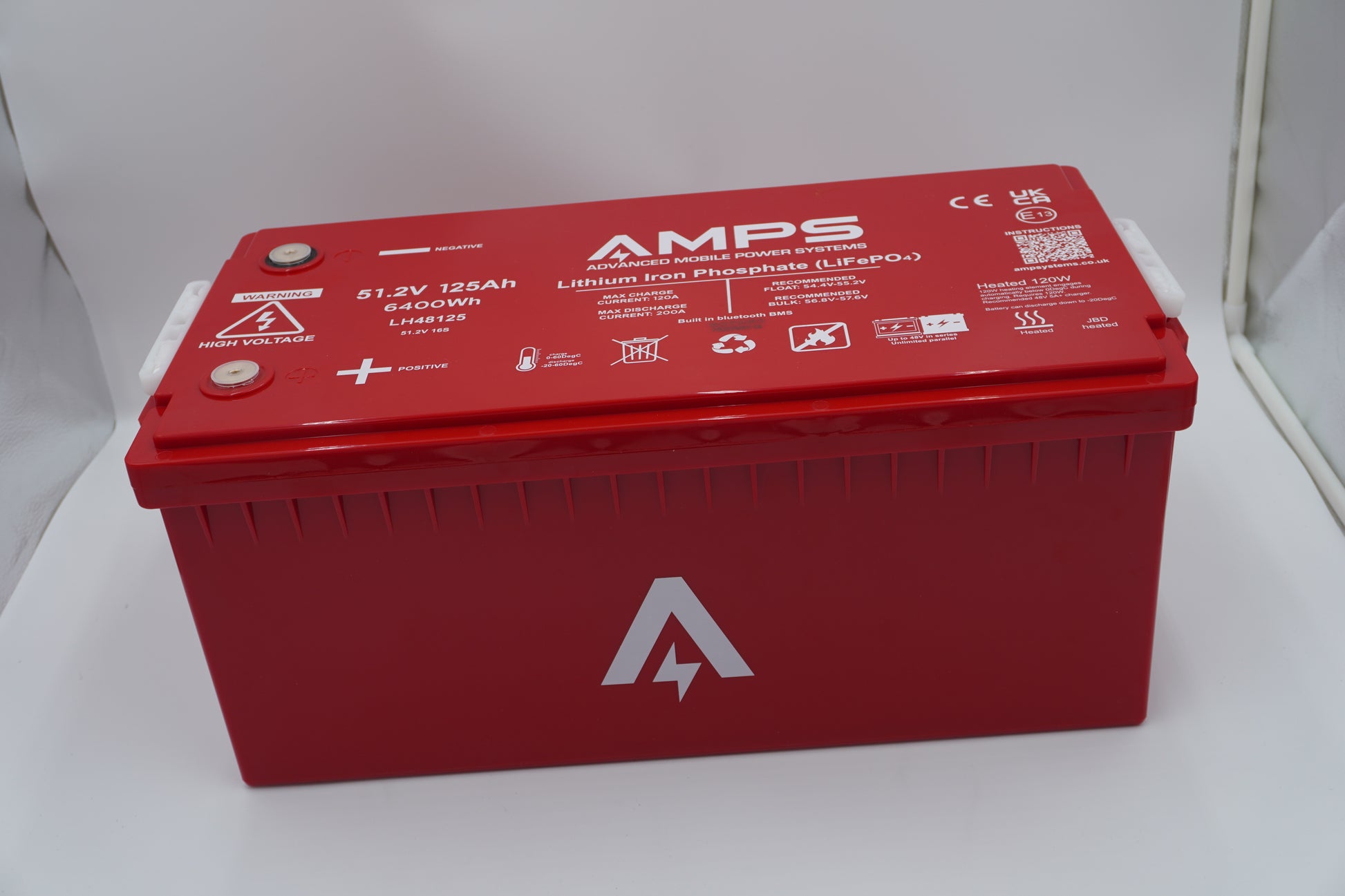

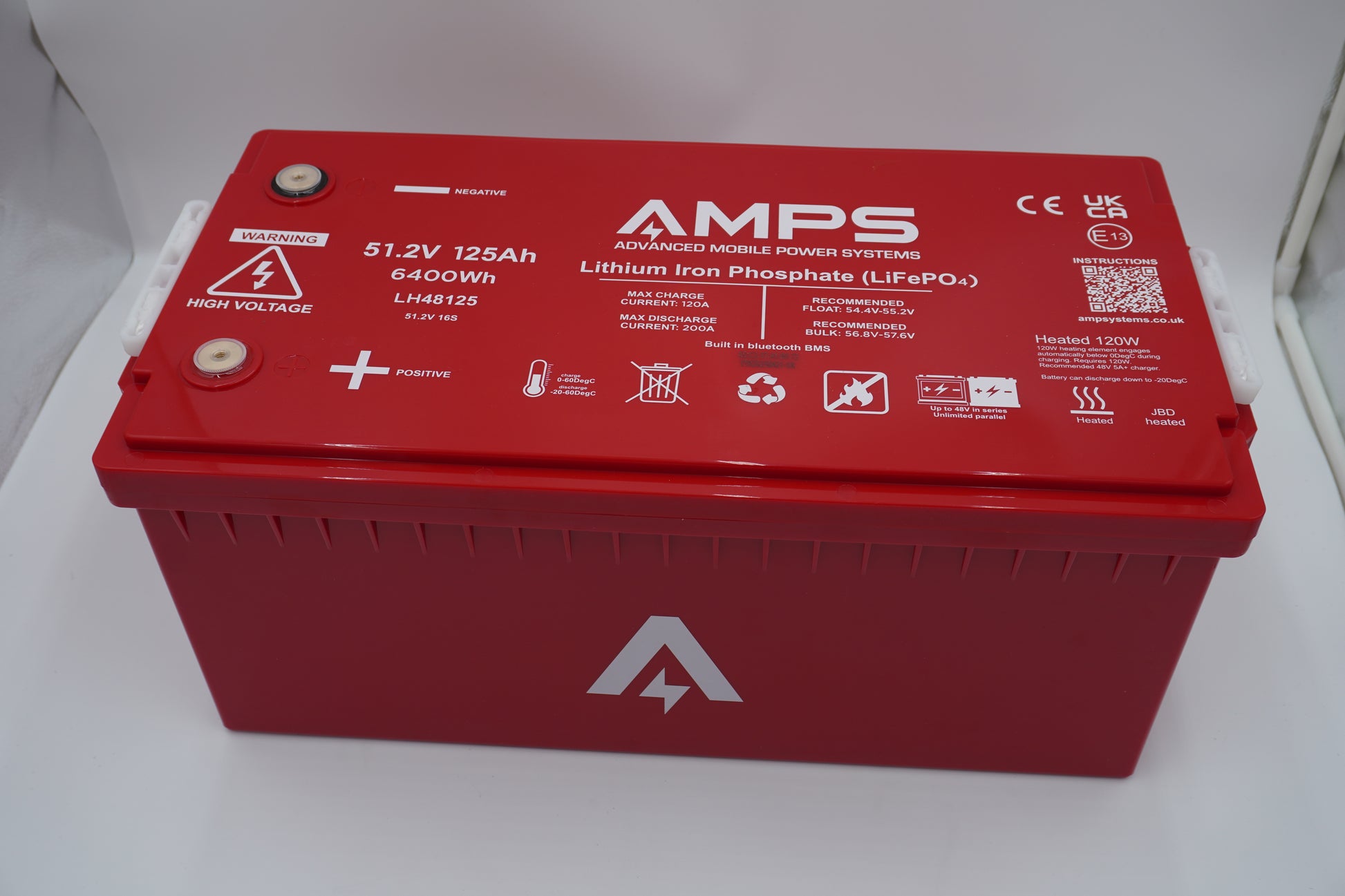

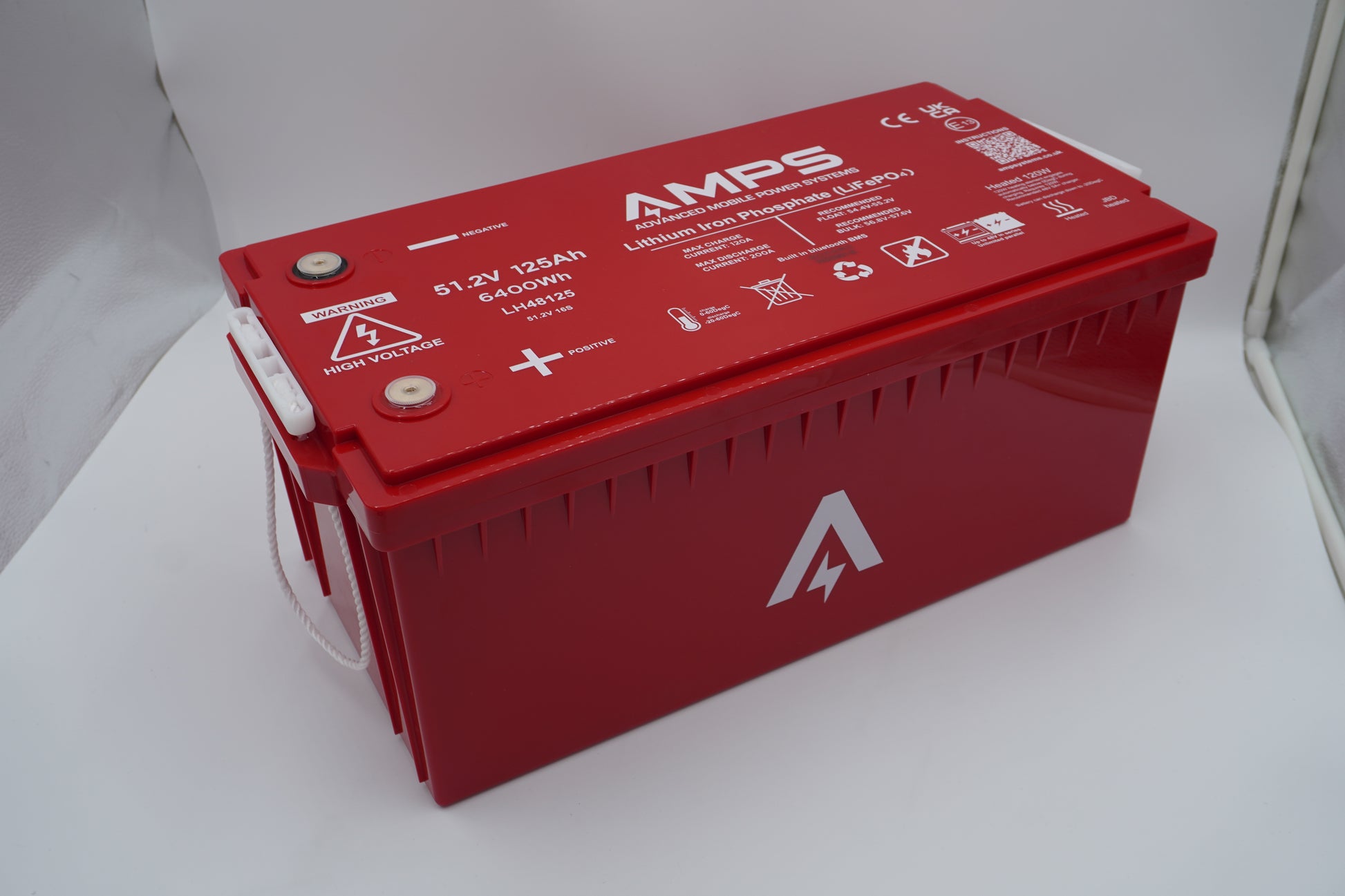

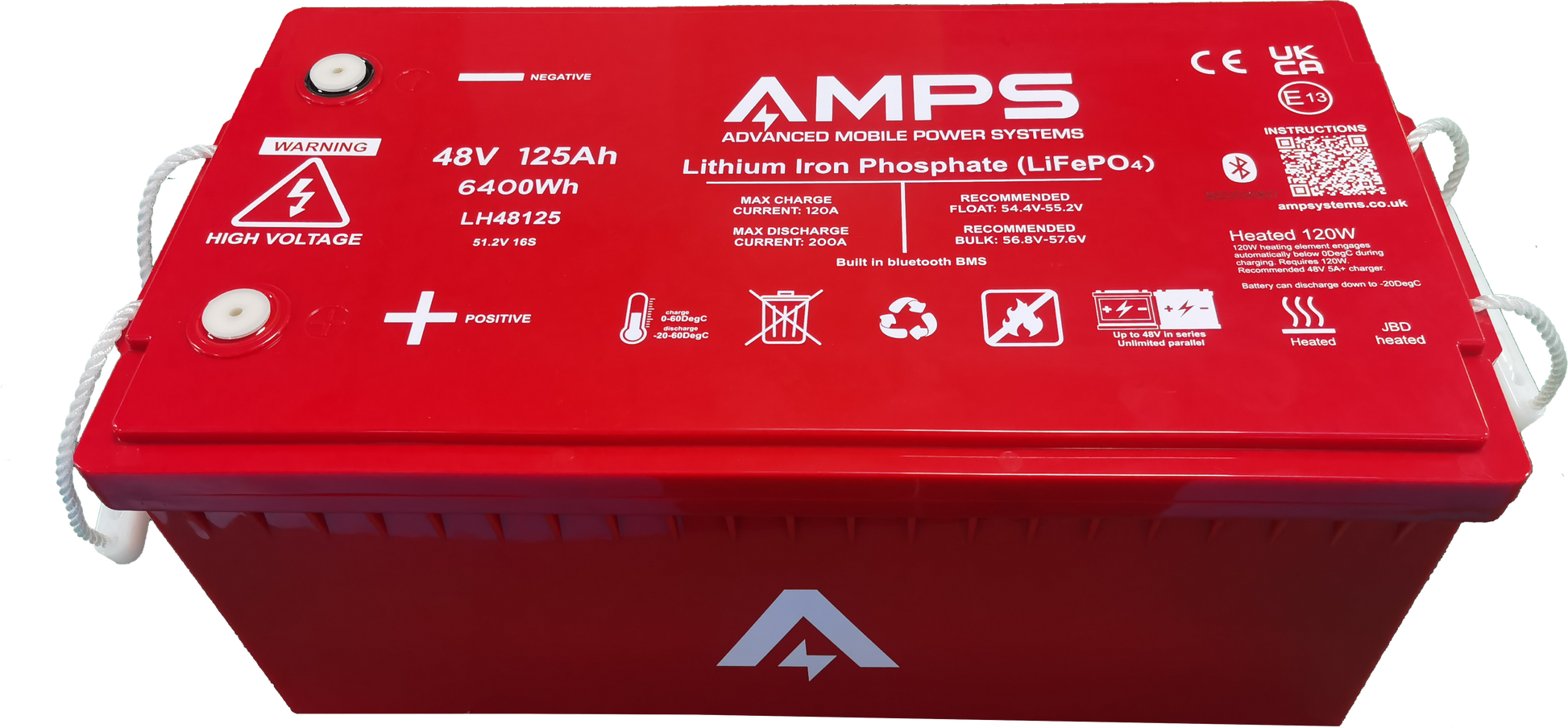

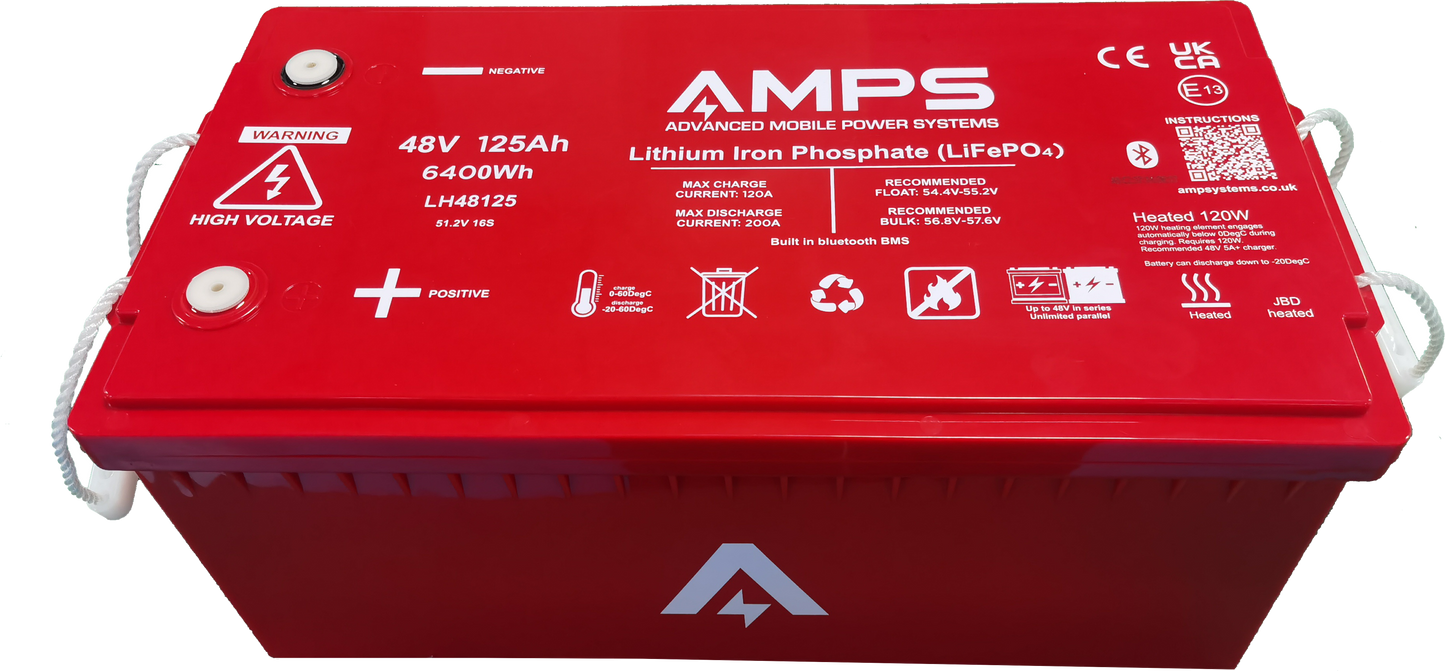

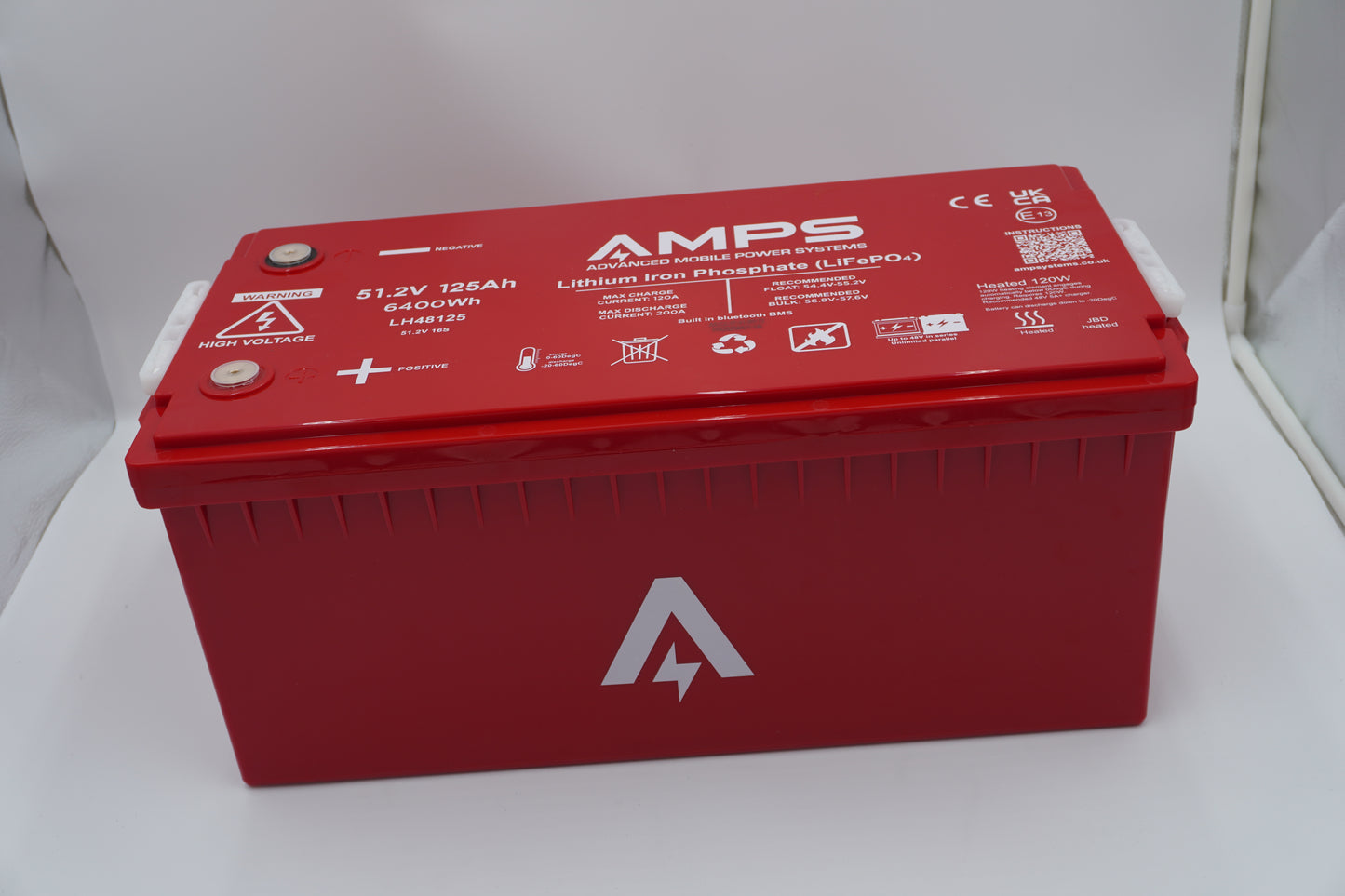

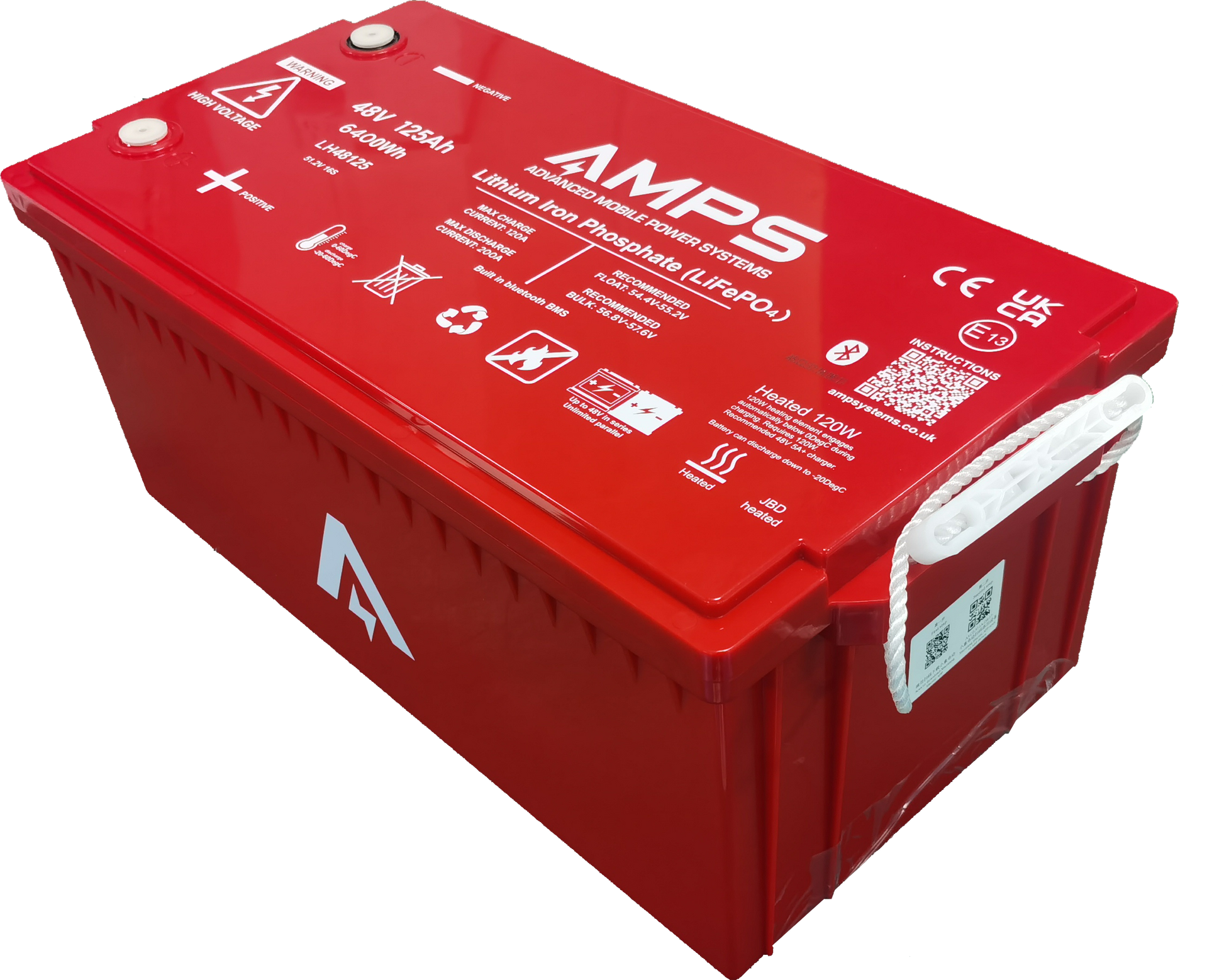

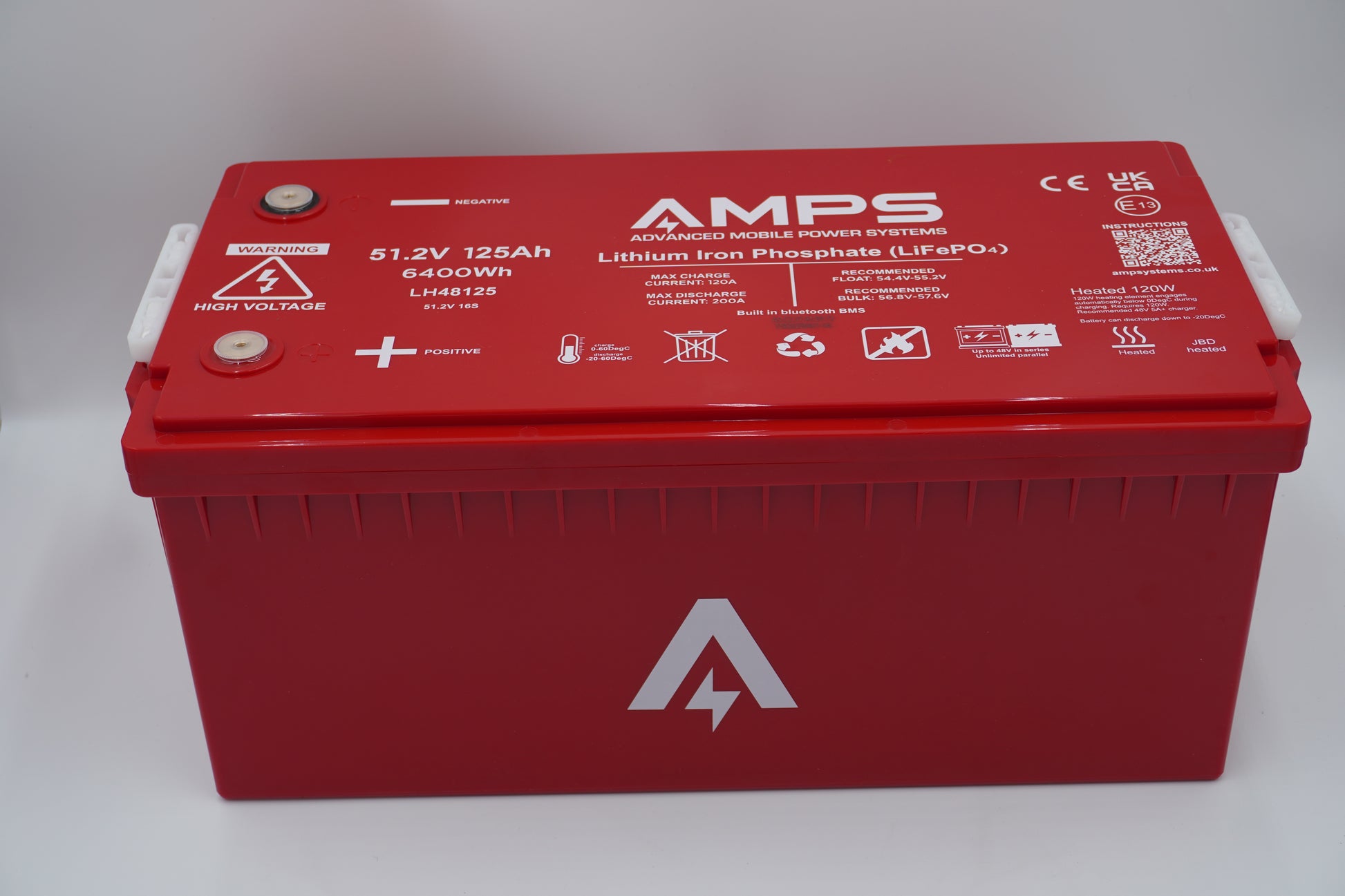

LH48125

£1,255.20
Tax included. Shipping calculated at checkout.

SKU: LH48125

UID LH48125
Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Battery nominal voltage 48 V
Amphour capacity 125
Watt/hour capacity 6400
Charge limit ["120 A"]
Discharge limit ["200 A"]
Bluetooth Yes
BMS Integrated / Included
Integrated protections ["Low temperature protections","Low voltage disconnect","Cell imbalance disconnect","Over-current disconnect","Short circuit protection"]
Terminals M8
Mass {"value":46.0,"unit":"kg"}
App AMPS BMS
Operating Voltage 51.2 V (16S x 3.2 V)
Warranty ["5 Years"]
Heating 125 W Heating
DIMS 520 mm, 267 mm, 220 mm

No product family information available.

No product family information available.

LH48125 details

Item specs

Vendor: AMPS

Product code: LH48125

Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)

Battery Nominal Voltage: 48 V

Operating Voltage: 51.2 V (16S x 3.2 V)

Amphour Capacity: 125

Watthour Capacity: 6400

Charge Limit:

  • 120 A

Discharge Limit:

  • 200 A

Bluetooth: AMPS BMS

Heating: 125 W

BMS: Integrated / Included

Battery terminals: M8

Dimensions (LWH): 520 mm, 267 mm, 220 mm

Mass: 46 kg

Integrated Protections:

  • Low temperature protections
  • Low voltage disconnect
  • Cell imbalance disconnect
  • Over-current disconnect
  • Short circuit protection

48V range of Lithium Iron Phosphate batteries

48V 125Ah -

THE APP



https://apps.apple.com/gb/app/amps-bms/id6566184145



https://play.google.com/store/apps/details?id=com.xzx.amps.bms&hl=en_GB






Battery Capacity 125 Ampere hour (125Ah) | 6400Wh LH48125
Nominal Voltage 51.2V
Heating Element yes, 120W
Battery Chemistry LiFePO4 Chemistry - Prismatic cells
Series Limit (48V bank)
Parallel Limit Infinite
Dimensions and Weight 52L x 26W x 22H (cm) - 42kg
Operating Temperature Charge - 0'C to 60'C // Discharge from -20'C to 60'C - Integrated heater for low temperature operation
Operating Voltage 54.4V (16S x 3.4V)
Charge Voltage 57.6V
Float Voltage 55.2V
Max Continuous Charge Rate  1C (120A)
Max Continuous Discharge Rate 1.8C (200A)
BMS Features Bluetooth interface for battery information
Low temperature battery disconnect (0'C for charge, -20'C for discharge)
Over voltage disconnect (14.8V or above on input)
Low voltage disconnect
Cell imbalance disconnect (Cell voltage differential of above 0.3V)
Automatic cell voltage balancing
Over current disconnect protection
Short circuit protection

Operational Quiescent Current 10mA
Standby Quiescent Current 0.1mA


Charge Curve Constant Current / Constant Voltage - CC/CV
Terminals M8
Warranty 5 years
