Sterling Power Products // AMPS
SKU: BB1240
| SKU | BB1240 |
| Nominal Input voltage (Side A) | 12 V |
| Nominal output voltage (Side B) | 12 V |
| Input voltage range | 9-16 |
| Output voltage range | 0-15 |
| Power rating (Peak wattage) | 550 |
| Bidirectional | Yes |
| Configurable | Yes |
| Efficiency | 95-98% |
| Remote Control | BBR |
| Family | Saturn |
No product family information available.
No product family information available.

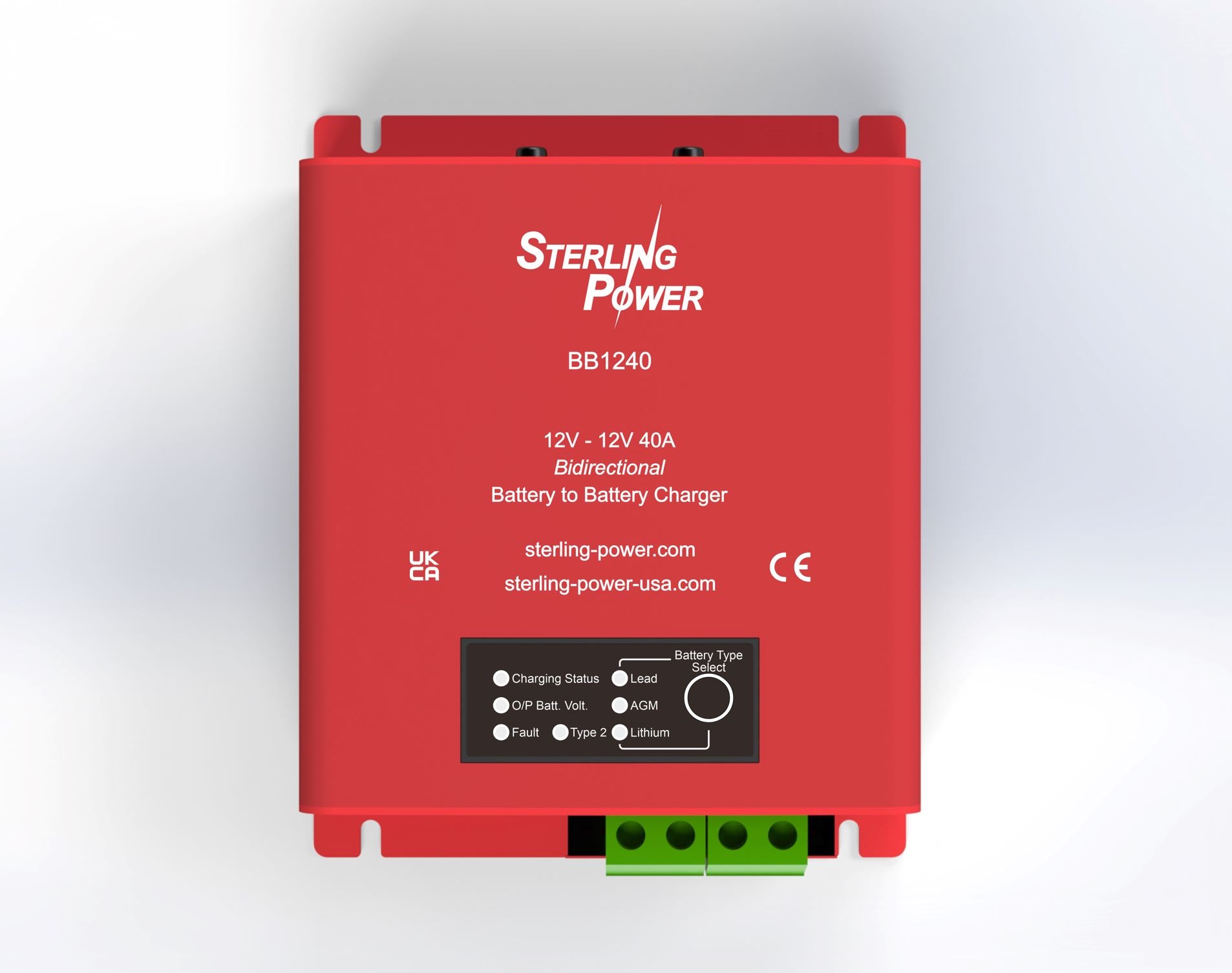

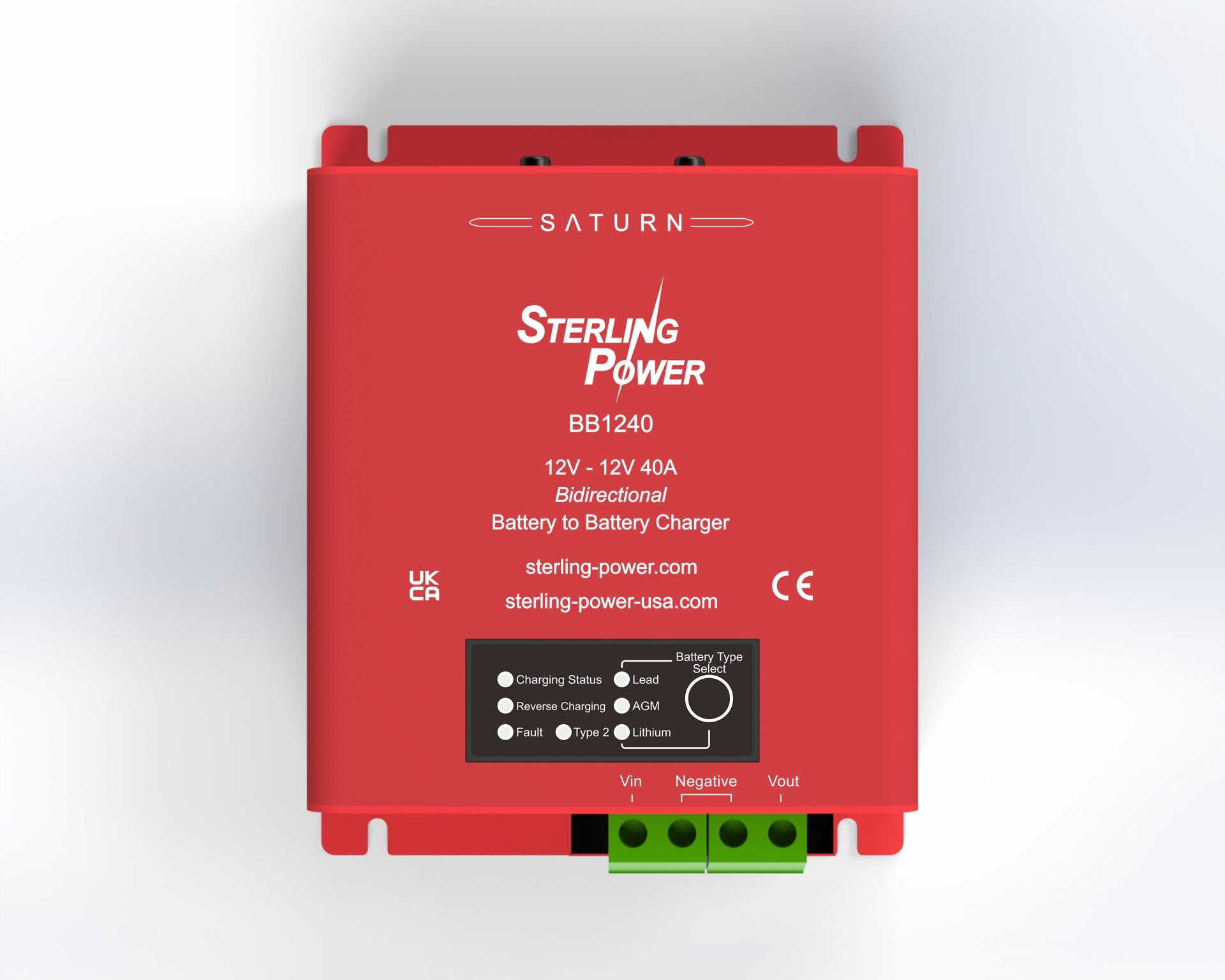

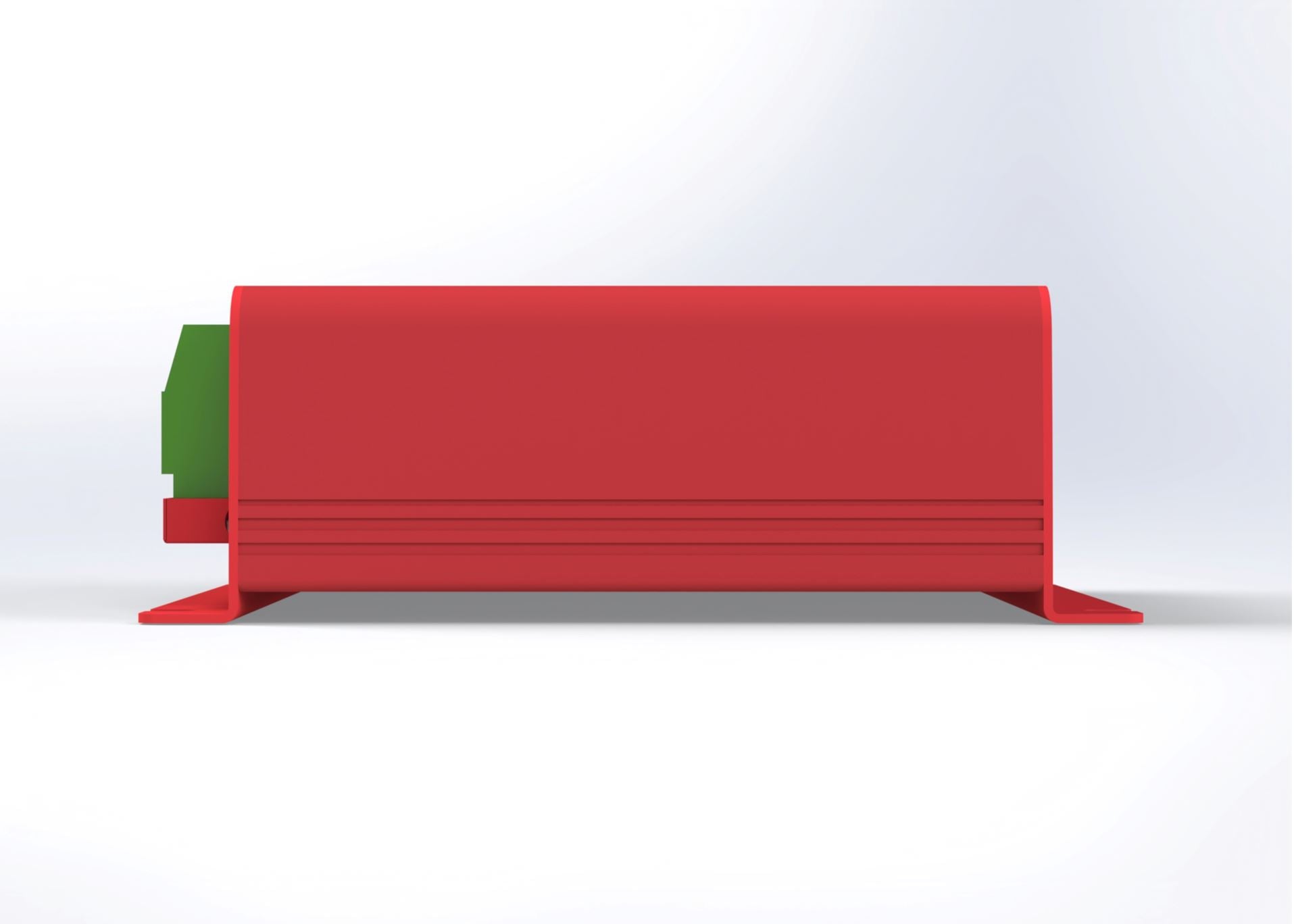

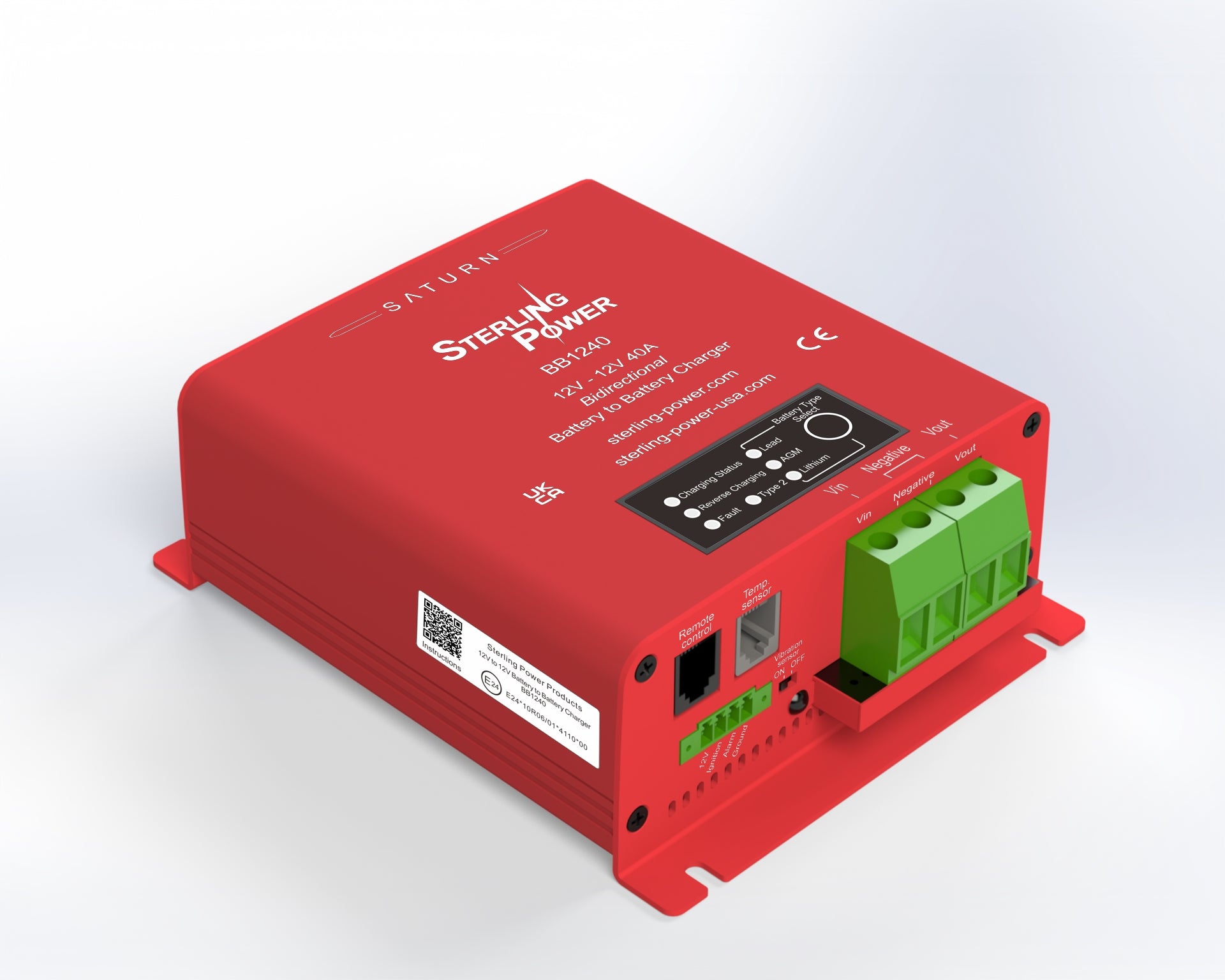

Saturn BB1240 - 12V to 12V 40A Battery to Battery Charger w/ reverse charge and jump start assistance
4 switch Buck Boost design, offering high efficiency (95-98%)
- Simple installation and setup
- Current limiting charger
- Lithium safe
Smart Alternator/Euro 6+ compatible
- Ignition feed or Vibration Sense modes
- 6 preset battery types
- 6 self recovering protections
- Low temperature trip for Lithium Ion batteries
| BB1240 Input voltage range 9V-16V Continuous Rated output power 38A at 14.41V ~550W Continuous Rated input current 42A at 13.68V ~575W Quiescent current 5mA Efficiency rating 95-98% Self recovering protections: under voltage protection input over voltage protection output over voltage protection over current protection charge over temperature Operational Temperature -20 Deg C -> 60 DegC Approval CE | UKCA E-Marking 24*10R06/01*3789*00 Cooling method Thermostatically Controlled Variable low speed fan Dimensions 165mm x 130mm x 56mm Weight 0.8Kg |
