AL1275

PRODUCT RANGE

£228.00
Tax included. Shipping calculated at checkout.

SKU: AL1275

UID AL1275
Battery Chemistry LiFePO4 (Lithium Iron Phosphate)
Battery nominal voltage 12 V
Amphour capacity 75
Watt/hour capacity 960
Charge limit ["40A"]
Discharge limit ["80 A"]
Bluetooth Yes
BMS Integrated / Included
Integrated protections ["Low temperature protections","Low voltage disconnect","Cell imbalance disconnect","Over-current disconnect","Short circuit protection"]
Terminals T1 Standard DIN and M8 Post Hybrid
Mass {"value":8.0,"unit":"kg"}
App SMART BMS
Operating Voltage 12.8 V (4S x 3.2 V)
Warranty ["5 Years"]
Heating No heating
DIMS 280 mm, 176 mm, 172 mm

No product family information available.

No product family information available.

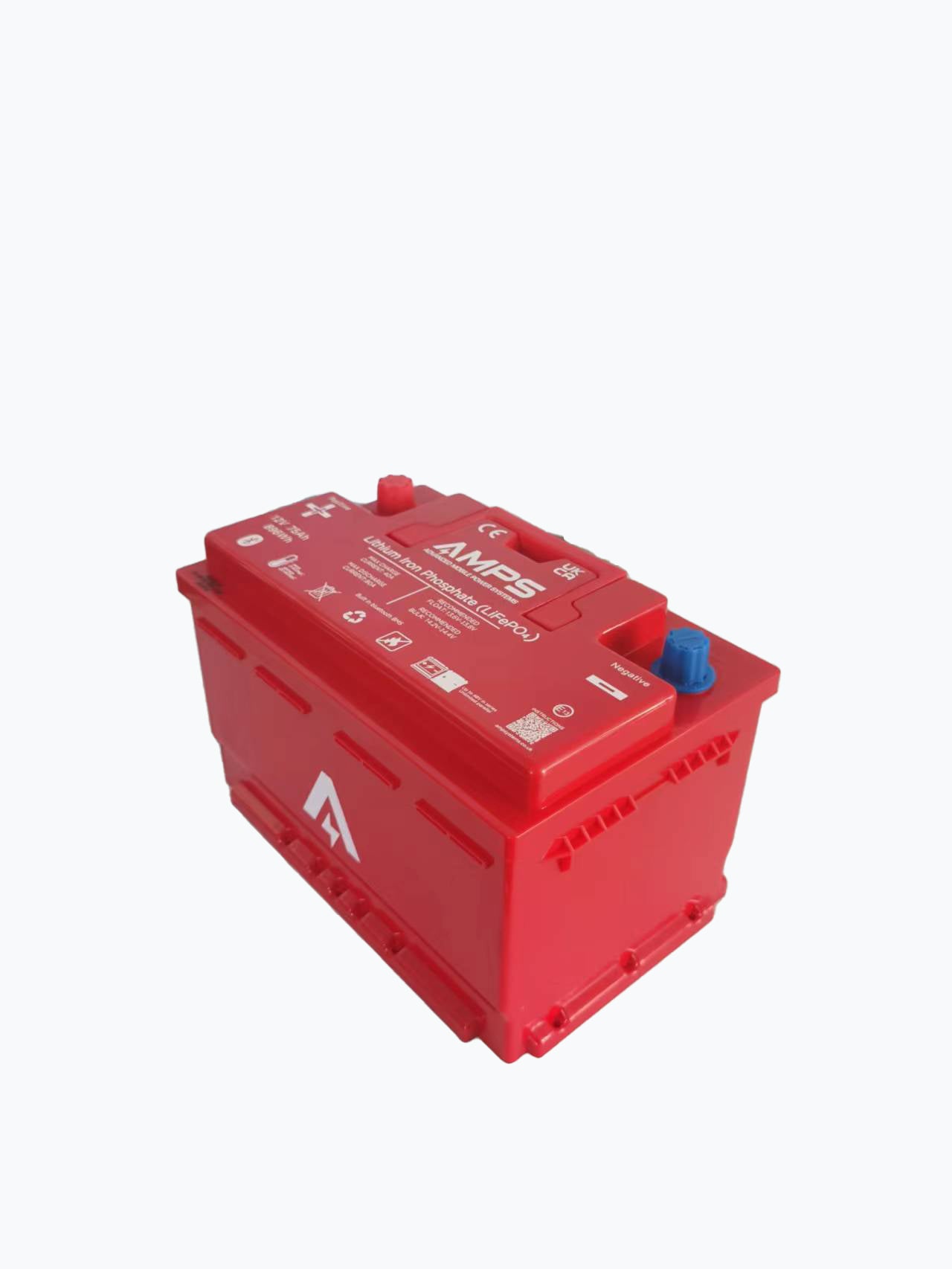

AL series LiFePO4 - Lithium Iron Phosphate batteries.

12V Batteries
Charge Discharge


Part No Ah Capacity Current (A) (max) Current (A) (max) Dimensions (cm) LWH Weight (Kg) Battery Terminal
AL1275 75Ah 40A 80A 28 x 17.6 x 17.2 8 T1 DIN



12V Lithium Batteries w/ Bluetooth BMS (except 20Ah model). Leisure Battery.

App can be downloaded here: SMART BMS for Android

App can be downloaded here for APP: APPLE app

60Ah | 75Ah | 80Ah | 100Ah | 120Ah | 150Ah | 200Ah | 300Ah | 400Ah | 24V 150Ah | 48V 100Ah - have bluetooth

20Ah model - does not have bluetooth function

Can be put in series up to 48V -unlimited parallel.

Limited five year warranty from date of purchase covers the purchaser/protects you against manufacturing defects. It does not cover negligence, improper use, natural expected changes in capacity or the operation of bluetooth (either the app itself or the connectivity to the app): - Please note, we can not ship these to the European Union, yet. We are working on getting this sorted.





Battery Information PDF - including Bluetooth

We are constantly updating our battery range and specifications.

The battery information PDF is prone to change. We endeavour to keep this updated.



 Instructions





12V 60Ah / 80Ah / 100Ah / 120Ah Lithium Iron Phosphate Battery with BMS and safety shutdown

general specs:

  • LiFePO4 12V (nominal) 60Ah / 80Ah / 100Ah / 120Ah / 150Ah / 200Ah / 24V 150Ah 25 deg C Lithium Deep cycle
  • Maximum continuous charge rate  = 50A / 60A / 70A / 80A /100A
  • Maximum continuous discharge rate  =120A / 140A / 150A / 150A / 200A
  • Battery must be safely charged within units parameters
  • Max charge V=14.6V, Recommended =14.4V, Float V=13.8V
  • Cut off voltage 11V / cutoff temperature 60 deg C
  • Charge Curve style  CC/CV
  • Operational temperature 0Deg to 60 deg C (adjustable)
  • internal consumption: Operational = 10mA, Dormant 0.1mA
  • 8mm ring terminal battery studs / washer
  • Can be put in series 12V | 24V | 36V | 48V


    MSDS file - Hazmat

    For the T1 DIN Standard Battery posts with 8mm thread. Positive and negative pair. They make a good addition if you wish to maintain legacy connections. Dimensions of the posts are below:
