NON HEATED LITHIUM BATTERIES (AL SERIES)
You'll find our full range of non-heated Lithium batteries (the AL series) below, in order of capacity. We have a huge range on offer, from 20Ah to 400Ah, 12V to 48V.
If you need any help with your selection or need to ask any questions- see if the below chart is of any use. If not, give us a call or email and we'll see what we can do to help.
As always, please ensure you're only charging Lithium batteries with a lithium suitable setup (Smart AC/DC chargers, current limiting DC/DC chargers).
If you would prefer to navigate the lithium batteries in a more standard E-Shop arrangement, please click the table below and you will be taken to our full 'Lithium' collection page.
Al1220 - 12v 20ah
BLUETOOTH : NO
CHARGE CURRENT (MAX) : 20A
DISCHARGE CURRENT (MAX) : 40A
DIMENSIONS (CM) : 19 X 7.7 X 18.7
TERMINALS : M5
AL1260 - 12V 60AH
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 50A
DISCHARGE CURRENT (MAX) : 120A
DIMENSIONS (CM) : 28 X 17.6 X 17.2
TERMINALS : T1 DIN
AL1275 - 12V 75AH
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 40A
DISCHARGE CURRENT (MAX) : 80A
DIMENSIONS (CM) : 28 X 17.6 X 17.2
TERMINALS : T1 DIN
al1280 - 12V 80Ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 60A
DISCHARGE CURRENT (MAX) : 140A
DIMENSIONS (CM) : 26 x 21 x 16.5
TERMINALS : M8 SCREW
al2450 - 24v 50ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 40A
DISCHARGE CURRENT (MAX) : 80A
DIMENSIONS (CM) : 26 x 21 x 16.5
TERMINALS : M8 SCREW

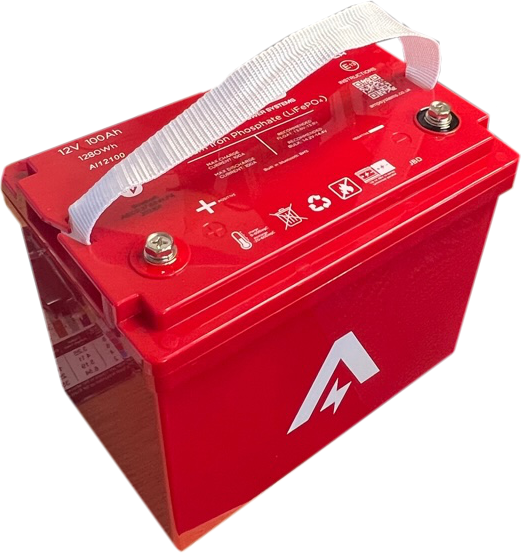

al12100 - 12v 100ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 70A
DISCHARGE CURRENT (MAX) : 150A
DIMENSIONS (CM) : 33 x 21.5 x 17
TERMINALS : M8 SCREW
al12120 - 12v 120ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 80A
DISCHARGE CURRENT (MAX) : 150A
DIMENSIONS (CM) : 41 x 23.5 x 17
TERMINALS : M8 SCREW
al12150 - 12v 150ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 80A
DISCHARGE CURRENT (MAX) : 150A
DIMENSIONS (CM) : 41 x 23.5 x 17
TERMINALS : M8 SCREW
al12200 - 12v 200ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 150A
DISCHARGE CURRENT (MAX) : 300A
DIMENSIONS (CM) : 53.2 23.7 x 21.5
TERMINALS : M8 SCREW
al12300 - 12v 300ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 150A
DISCHARGE CURRENT (MAX) : 300A
DIMENSIONS (CM) : 53.2 23.7 x 21.5
TERMINALS : M8 SCREW
al24150 - 24V 150Ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 80A
DISCHARGE CURRENT (MAX) : 150A
DIMENSIONS (CM) : 53.2 23.7 x 21.5
TERMINALS : M8 SCREW
al12400 - 12v 400ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 150A
DISCHARGE CURRENT (MAX) : 200A
DIMENSIONS (CM) : 52 x 26.7 x 22
TERMINALS : M8 SCREW
al48100 - 48V 100ah
BLUETOOTH : YES
CHARGE CURRENT (MAX) : 50A
DISCHARGE CURRENT (MAX) : 100A
DIMENSIONS (CM) : 52 x 26.7 x 22
TERMINALS : M8 SCREW
