Alternator chargers

Alt to Batt

Alternator to battery chargers are powerful and utile solutions to improving battery charge on boats as well as on non-smart alternator vehicles.

Combining voltage control/boosting and output splitting, you have an alternator regulator and a split charger in one simple to install box!

Note : Always use current limiting charge systems for lithium batteries - or ensure exceptional cooling to the alternator.

  • Up to 130A

    9 preset battery types, temperature and voltage sensing, and with solutions for both 12V and 24V alternators!

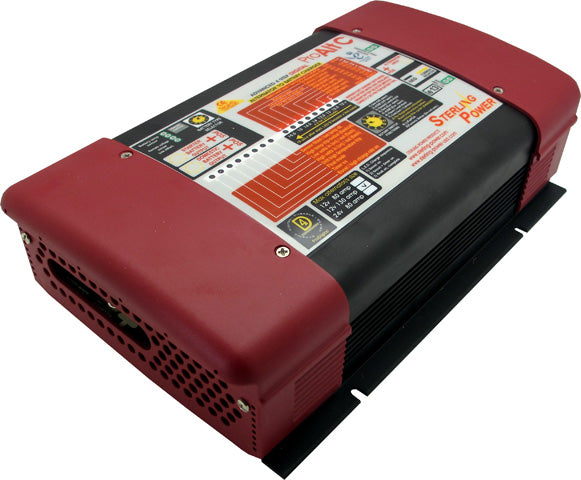

    • AB1280 - 12V nominal, 80A maximum rating
    • AB12130 - 12V nominal, 130A maximum rating
    • AB2480 - 24V nominal, 80A maximum rating

  • Up to 400A

    4 preset battery types, temperature sensing, voltage sensing, solutions for both 12V and 24V alternators!

    • AB12300 - 12V nominal, 300A maximum
    • AB12400 - 12V nominal, 400A maximum
    • AB24200 - 24V nominal, 200A maximum
    • AB12160 - 12V nominal, 160A maximum
    • AB12210 - 12V nominal, 210A maximum

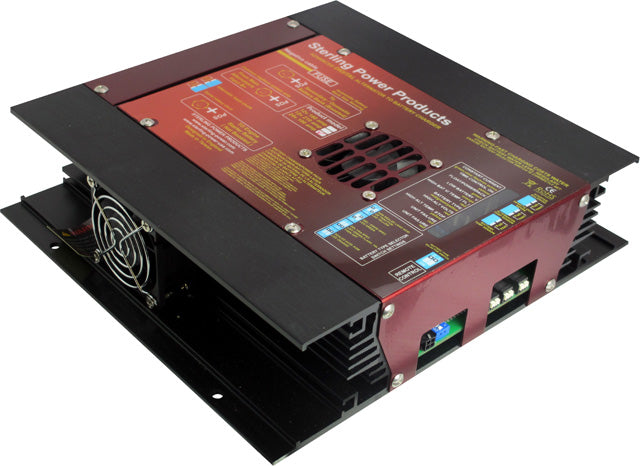

    • AB24100 - 24V nominal, 100A maximum

Alternator Chargers

Alternator regulators

If your goal is just to improve what your alternator is doing - giving yourself better voltage regulation and a bit more intelligence about how batteries are charged... The alternator regulator is a great choice.

This can be installed as either the only regulator for your alternator, or can be installed to take precedence over your existing alternator regulator.

  • AR12W

    -Suitable for 12V alternators only -

    The AR12W is a simple and effective regulator for alternators rated to ~150A or less if installed on its own- up to 300A if installed alongside an existing regulator!

    Includes battery temperature sensor and summary protections for your alternator and battery system.

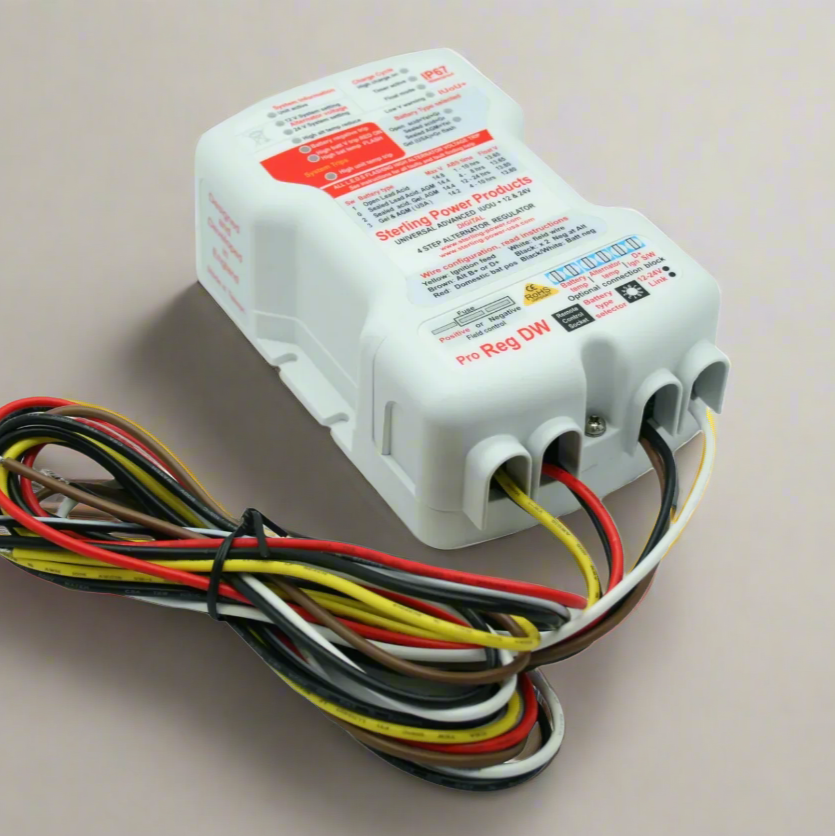

  • PDARW

    -Suitable for 12V or 24V alternators-

    Waterproof alternator regulator with advanced intelligence- monitoring the temperature of both your alternator and your battery systems.

    Working in parallel with an existing regulator the PDARW is able to regulate alternators up to ~400A rated. As a standalone reg, we would expect 200A to be the comfortable limit.
