| Family | CVSR - Current limiting Voltage Sensitive Relay |
No description available for this product family.
Sterling Power Products // AMPS

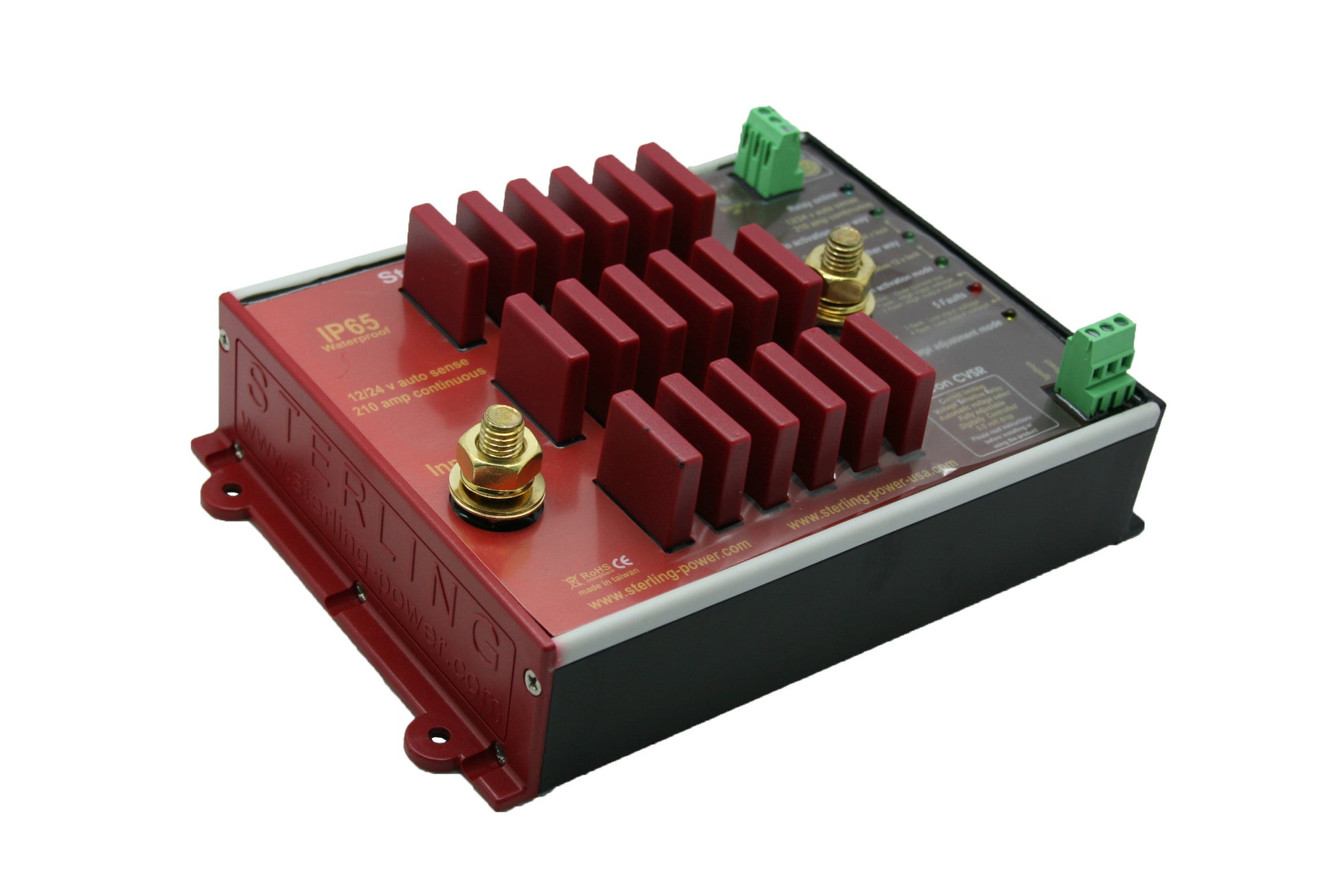

CVSR210
PRODUCT RANGE
Regular price
£233.64
Tax included. Shipping calculated at checkout.
SKU: CVSR210
|
|
Instruction Manual PDF
Product InformationCurrent Limiting voltage sensitive relays (adjustable)
| DC Voltage | Amps | Size L x W x D mm | Weight Kg | Part Number |
| 12 & 24 auto | 210 | 140 x 210 x 40 | 0.5 | CVSR210 |
Current limiting Voltage Sensitive Relays: This range have all the adjustment abilities as per the Pro Connect VSR.
These relays have built in current limiting, in a nutshell you can do whatever you want with them, if you overload them they simply switch off safely. The trick with a relay is not to open circuit when it is overloaded, but to remove the load, then open circuit the relay within its rating. With a current limiting VSR in an overload situation such as the example in the section above (Voltage Sensitive Relays) the 200A will surge through the relay for a split second (within the relay's capability), then the built in current limiting device will see this overload and reduce the current from the dangerous 200A+ to a very safe 6A, the relay will then safely open circuit with a 6A load and not a 200A load, and so protect the relay and your installation. Once the high load demand has been removed then the relay is safe to re-engage and continue doing its job.
Features
| 0.01 Volt drop | Ignition feed (not always required) |
| Waterproof to IP65 | SAEJ1171 ignition protected |
| High overload surge rated | Back EMF spark arrester |
| Remote LED connection | No ignition feed voltage drop |
| Suppressing diodes across relay to prolong life | Single & twin starter motor disengage connections |
| Time delay to prevent engine starter damage | 12V & 24V automatic selection |
| Extremely low quiescent current approx 1mA | Custom voltage adjustment parmeters available |
| Active progressive disconnect algorithm | Automatic voltage activation |
| Automatic voltage de-activation | Protects primary battery from discharge |
| Emergancy auxillary forced activation | High battery voltage trip protection |
| 5 LED information display | 5 alarm functions and safety trips plus information |
| Adjustable relay trigger side operation | Short circuit protection (prior to engagement) |
| Current limiting protection |
