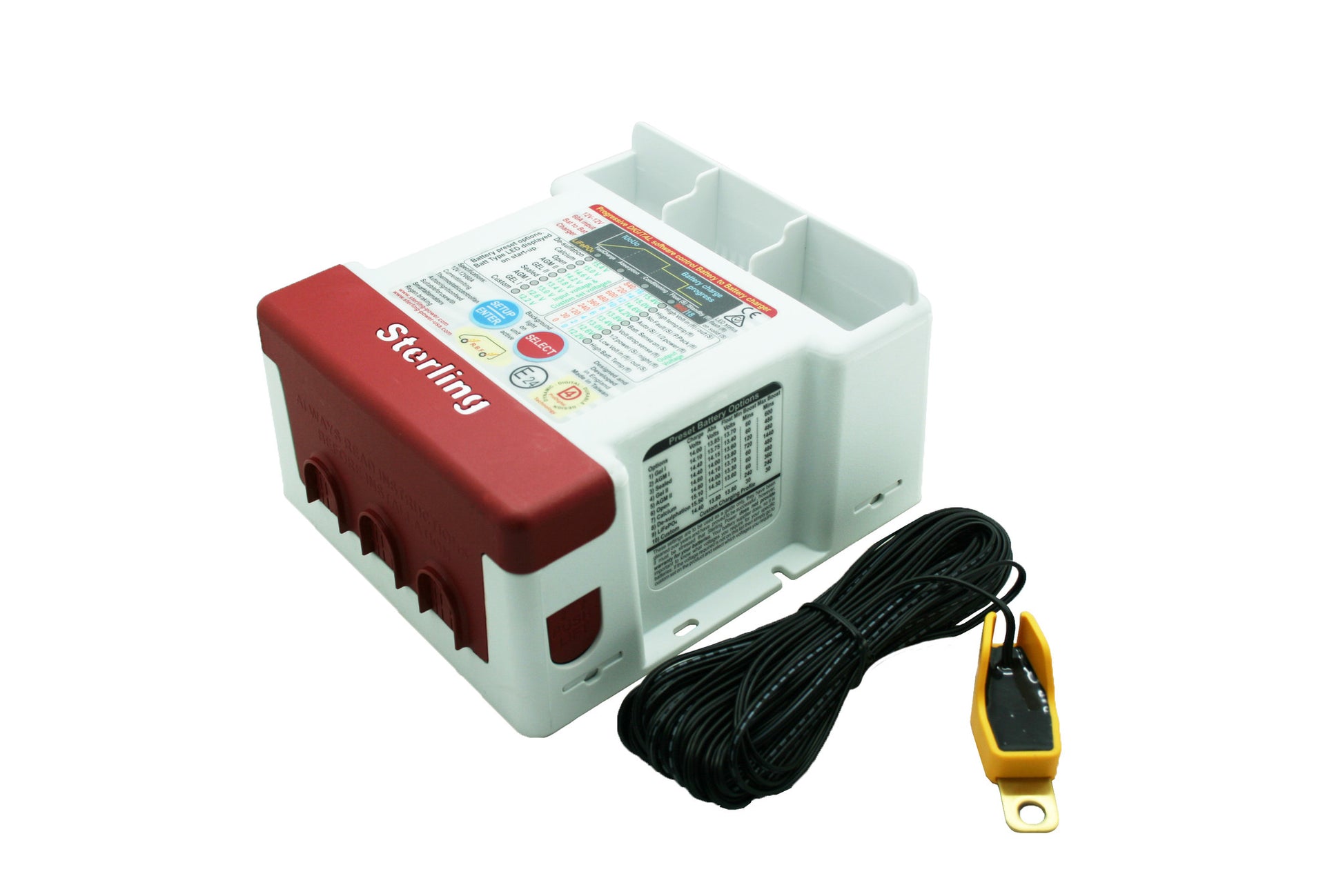

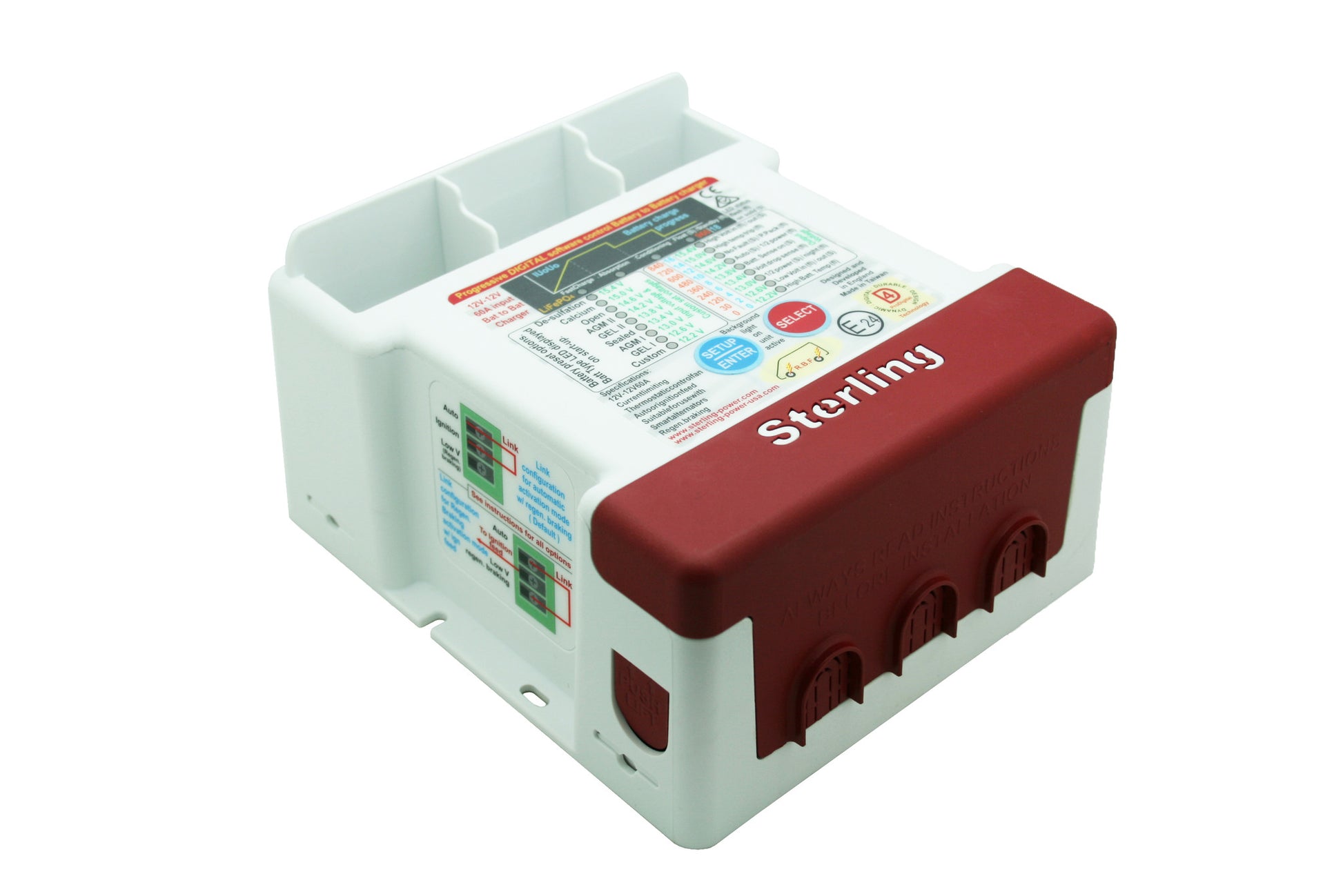

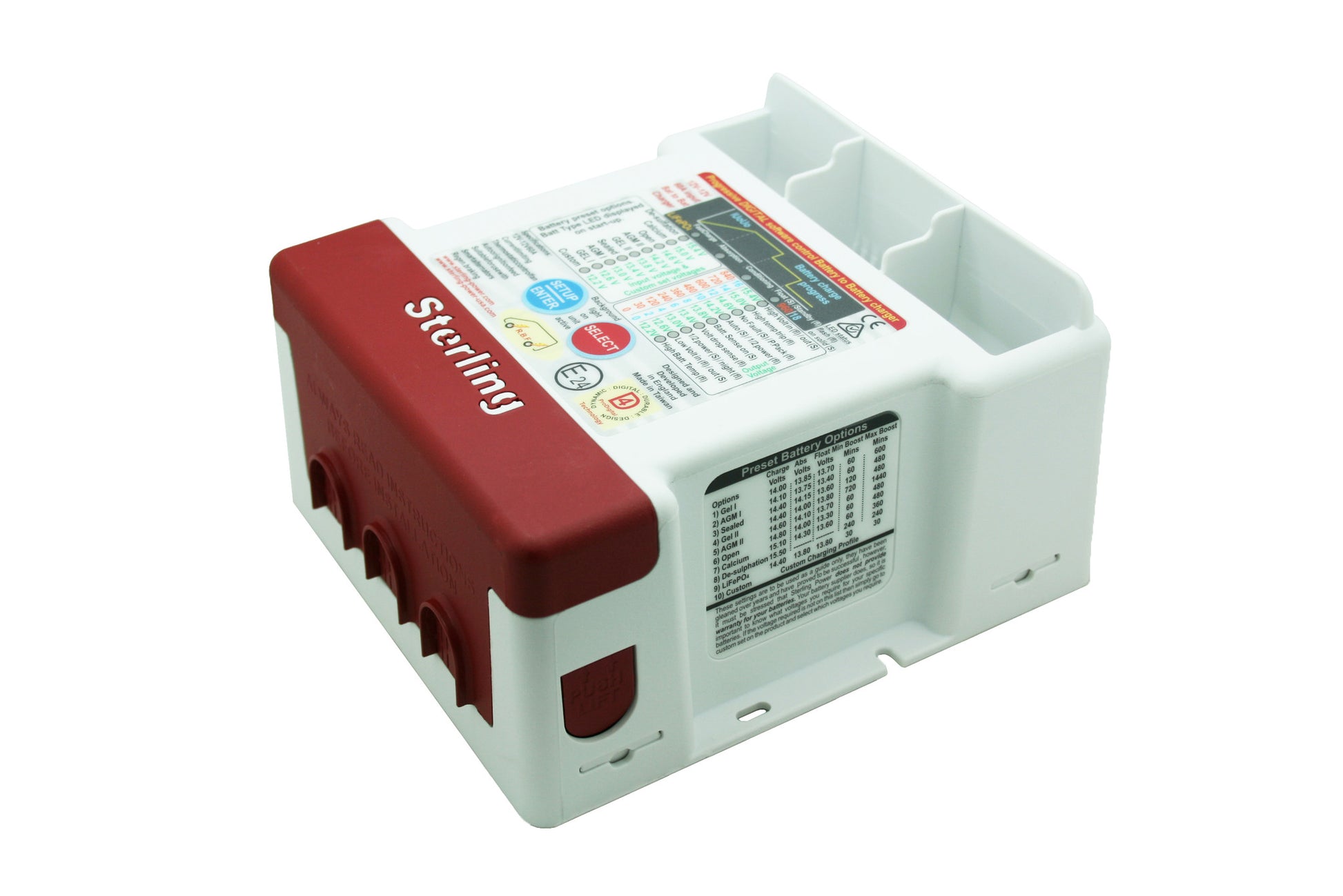

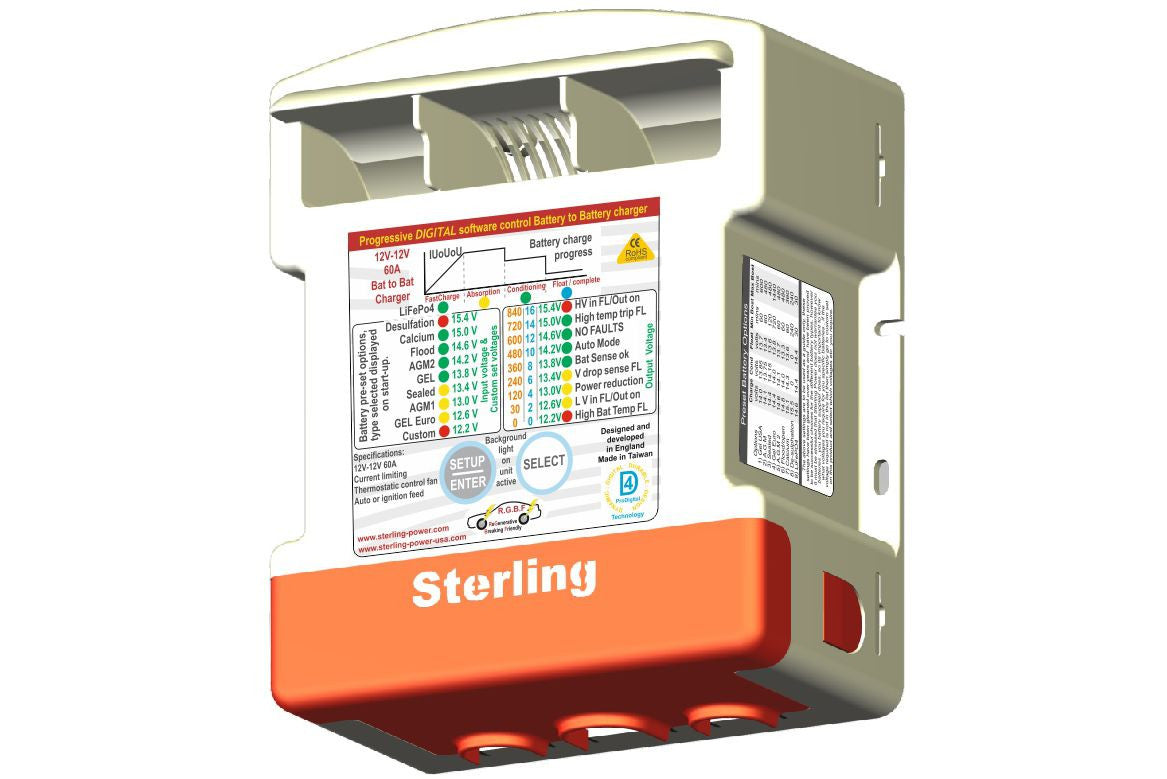

BB1230C

THE CONDITION OF THESE BB UNITS MAY HAVE MARKS, SCRATCHES, FINGERPRINT SMUDGES AND/OR DAMAGED / CRACKED CASES. THEY ARE NOT IN PERFECT VISUAL / AESTHETIC CONDITION. IF YOU WANT A PERFECT UNIT, PLEASE BUY NEW. HOWEVER, THEY HAVE BEEN TESTED THOROUGHLY. THEIR PERFORMANCE IS IDENTICAL TO NEW MODELS. THEIR FUNCTIONAL CAPABILITY, LIKEWISE.

THESE ARE IDEAL FOR PERSONAL USE; WHEREBY YOU ARE NOT FUSSED ABOUT SUPERFICIAL IMPERFECTIONS.

LIKELY  TO BE SUPPLIED WITHOUT PRINTED INSTRUCTIONS. PLEASE REFER TO THE 2 INSTRUCTION MANUAL LINKS THAT FOLLOW.

Installation instructions below

 RED LABEL INSTRUCTIONS  - For units that have a RED stripe horizontally at the top of the front label

 GREEN LABEL INSTRUCTIONS - For units that have a GREEN stripe horizontally at the top of the front label

BB 12V and 24V derivatives also available, please check the drop down box.

These units have the latest software modifications, they work perfectly.

9 months warranty applies for these models.

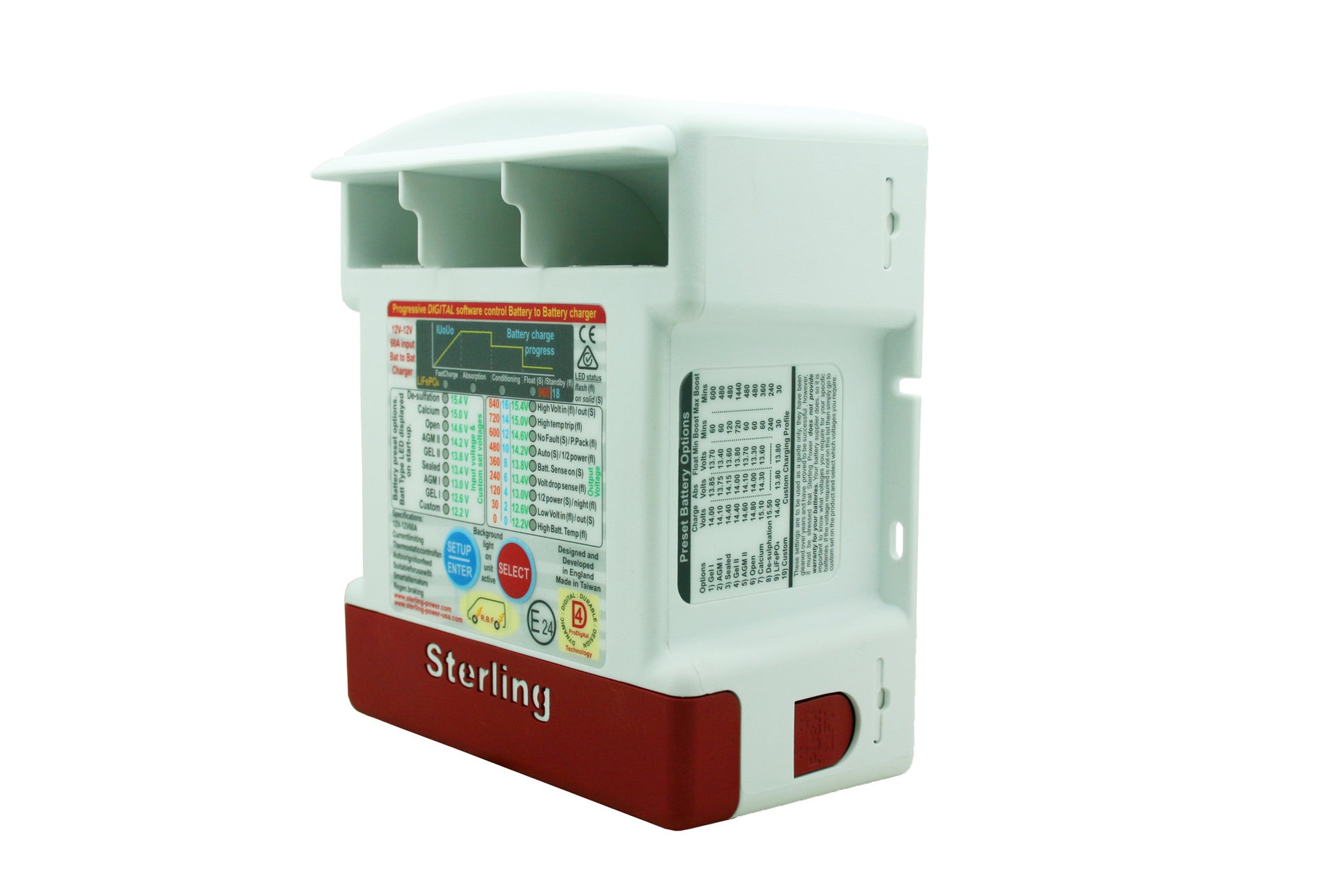

Pro Batt Ultra This Battery to Battery Charger is Regenerative Braking / Smart Alternator Friendly - ideal for Euro 5 / 6 + engines.

E marking Certificates for the BB1230 | BB1260 | BB122470

Sterling's range of Battery to Battery Chargers (B2Bs) has grown significantly over the past few years.  This is in an effort to supplement the ever growing demand from the commercial vehicle, recreational vehicle and marine industries.  The B2Bs have become extremely popular as they fast charge batteries as you cruise along without the need for complex wiring, touching your alternator, voiding the alternator's warranty and tampering with the electronic control units (ECUs).  You can provide the onboard batteries with a fast 4 stage charging profle with a very simple and speedy installation.  All of the benefits of advanced charging without any of the drawbacks.  Simply connect the B2B between the battery being charged and the battery you wish to charge.

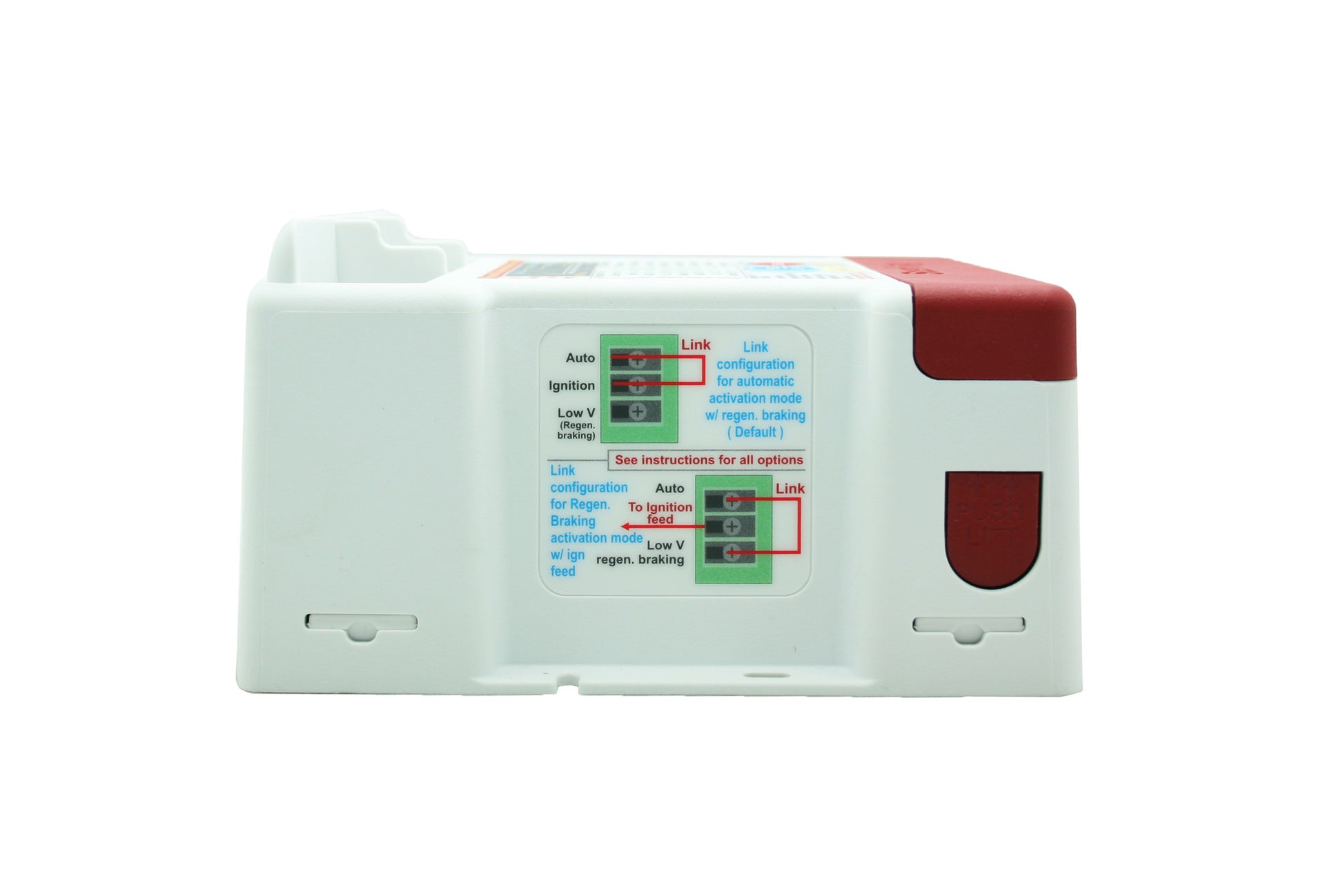

1) Multiple Activation Modes: Automatic for most non vehicle applications,

    Manual for remote activation.

    Regenerative braking (requiring ignition feed),

    Automatic regenerative braking, requiring no ignition feed.

2) Output charging at 12V, 24V, 36V and 48V.  Input voltages at 12V and 24V, Up to 800W rating.

3) Much larger model up to 3000W coming soon.

4) Current is NOT taken from the input battery and given to the output battery.  The B2B uses alternator power to charge the output battery.  Manual mode and regenerative braking mde allows you to override this.

5) Safety features:

100% fire proof plastic box.

No screws to corrode.

Thermal power reduction.

Multi stage fan cooling

6) Night Time Setting: Allows the unit to ran at half the power so the fan noise is kept down.

7) Boost / Reduce Charging: The B2Bs ensure batteries get the correct charging profile irrespective of high or low input voltages.

8) B2B turns on at 13.3V and turns off at 13.0V (x 2 for 24V).  Thus, does not drain input battery.  Regenerative braking mode allows the input voltage to drop to 12.2V (x 2 for 24V).

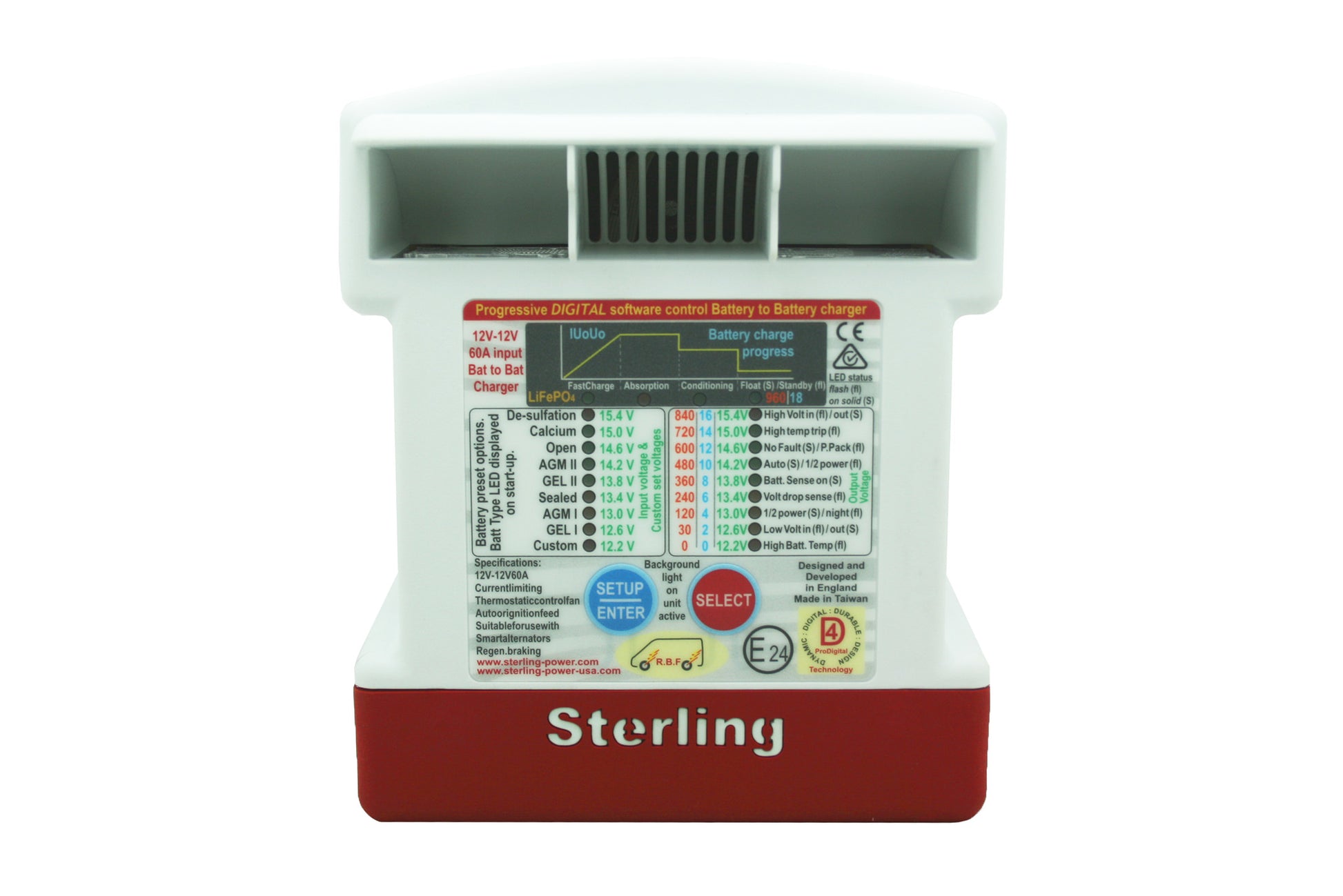

9) Customizable Profile: Choose your own charging profile on the front panel.

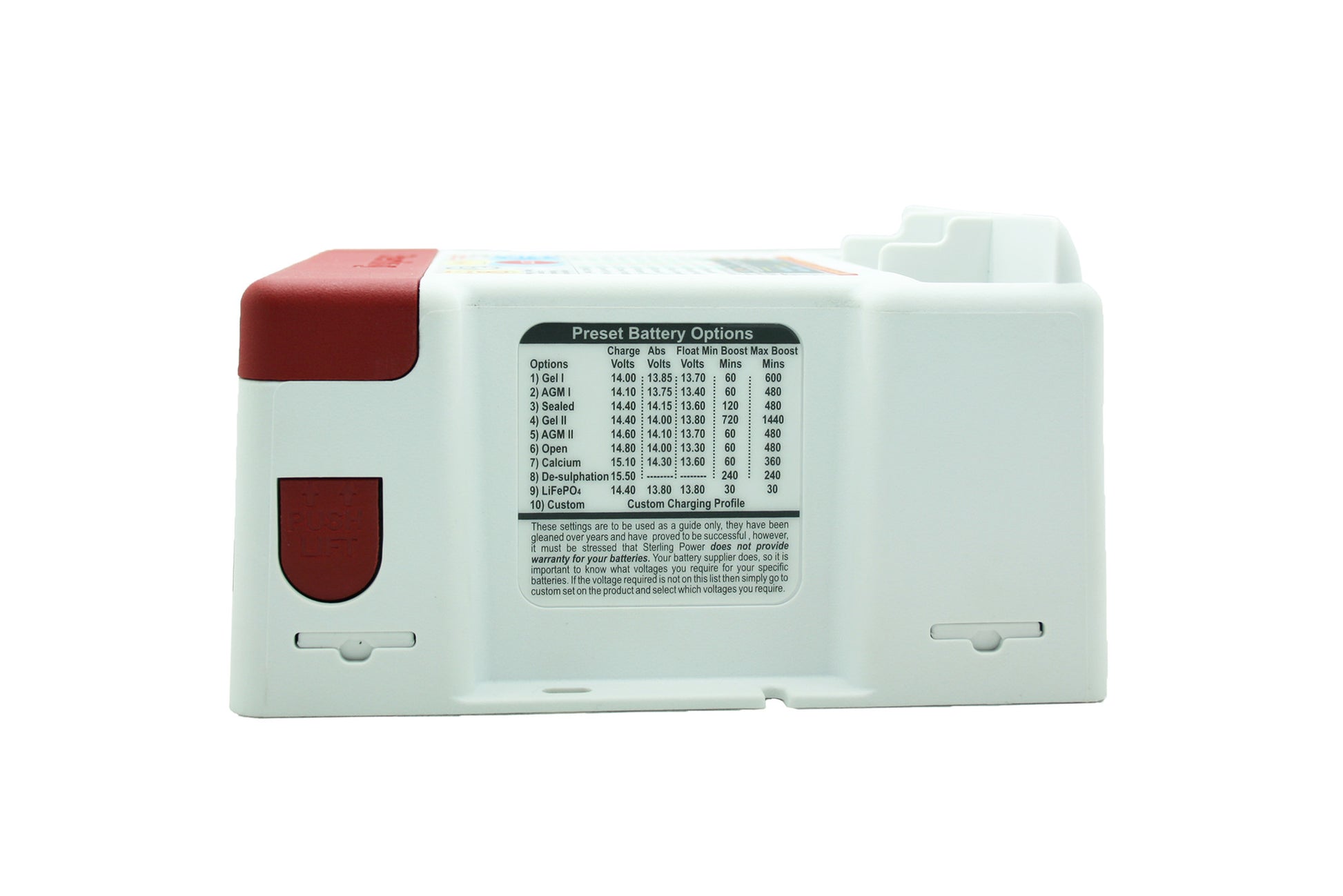

10) 9 preset battery chemistry options: Including AGM, LiFePO4, Gel, Flooded and sealed lead acid.

11) 4 stage battery charging: Thge B2B charges batteries between 5-20 times faster than a stand alone alternator.

12) Very Simple to install: No electronic Control Unit (ECU) issues.  No complex wiring.  No warranty issues.  Fully prepared for smart alternators (regenerative braking).

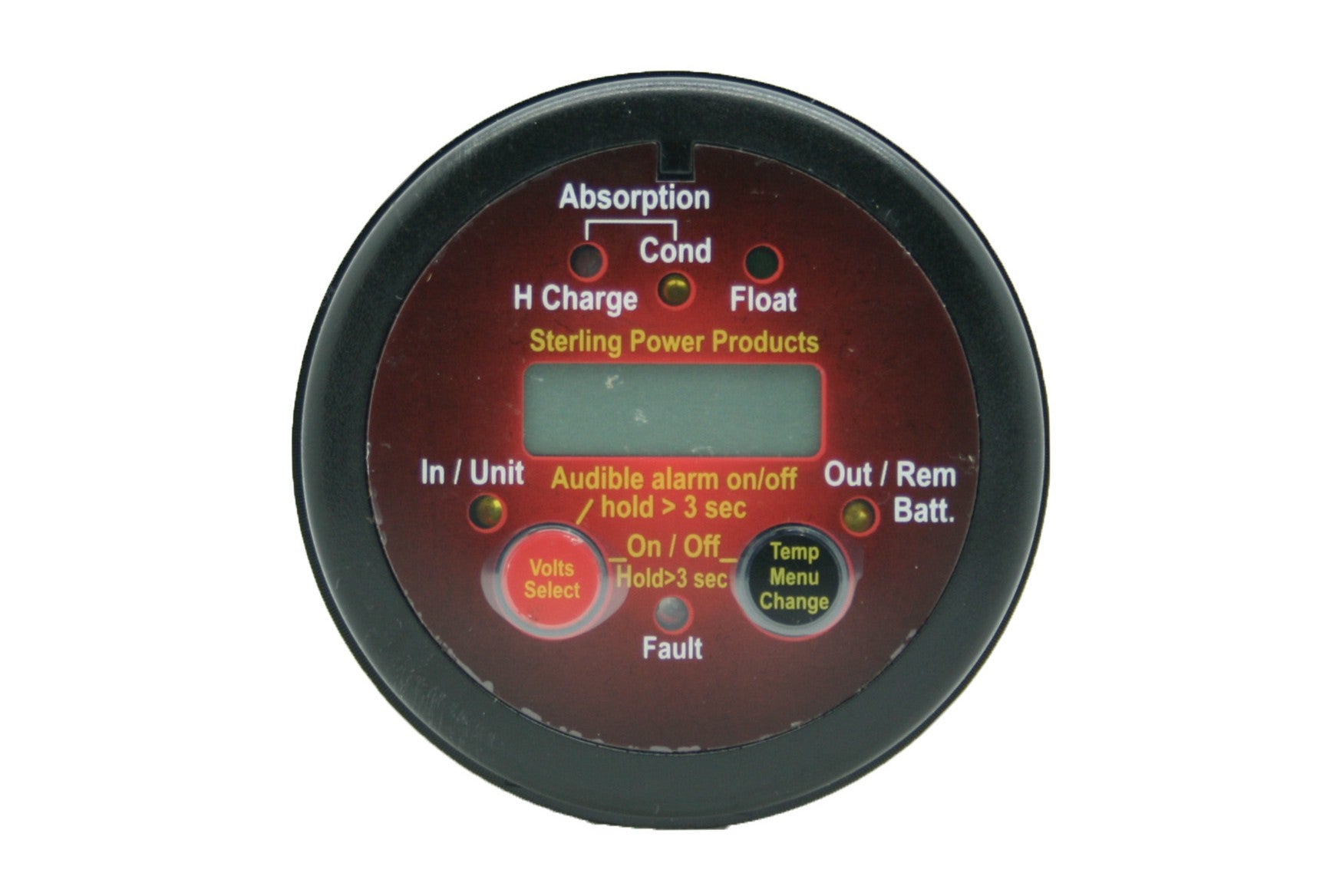

Remote control optional.
