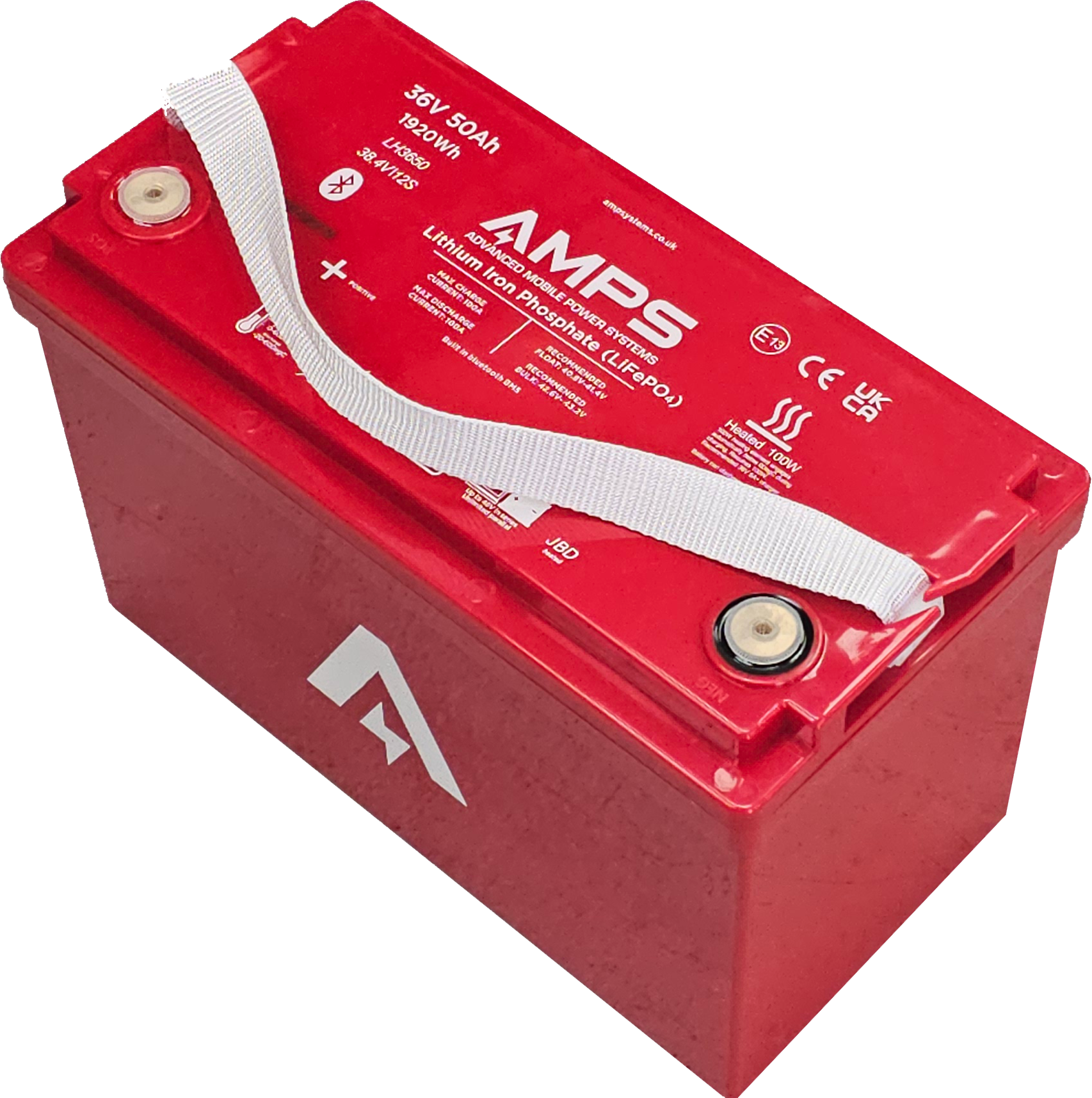

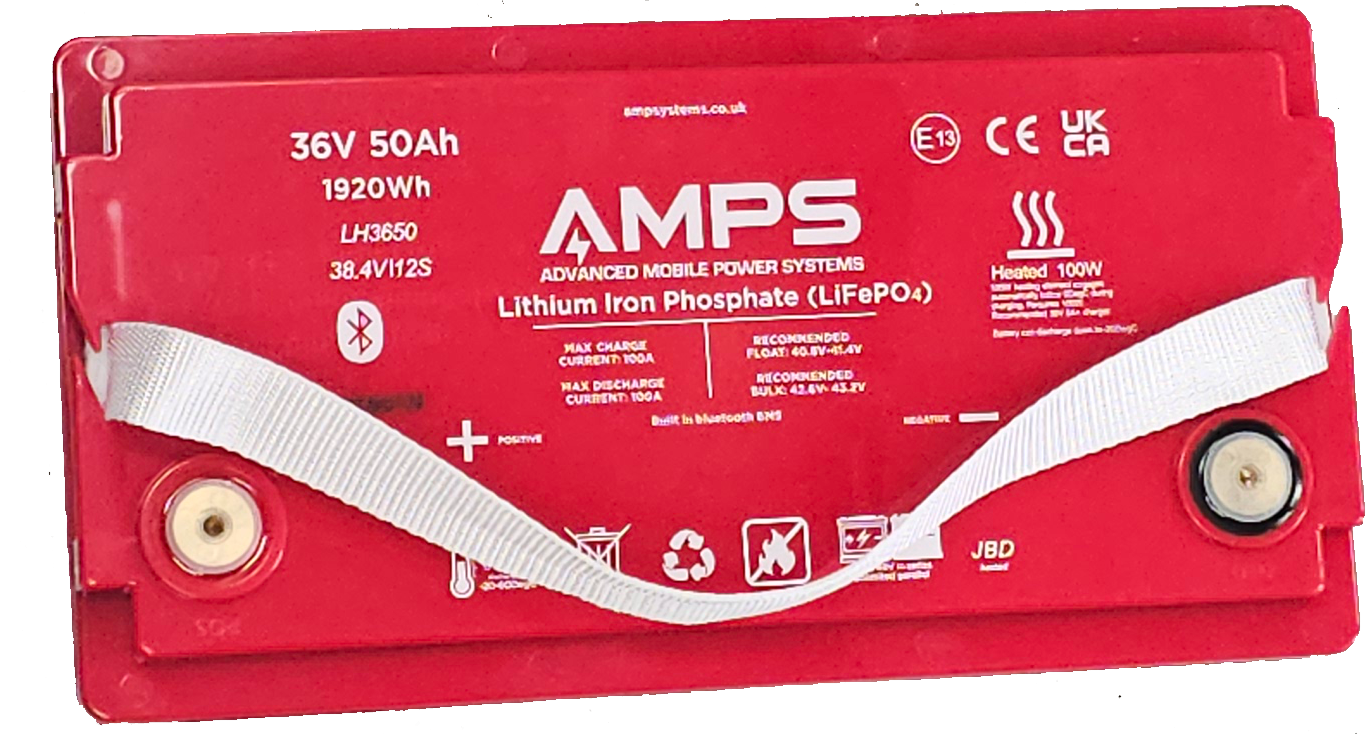

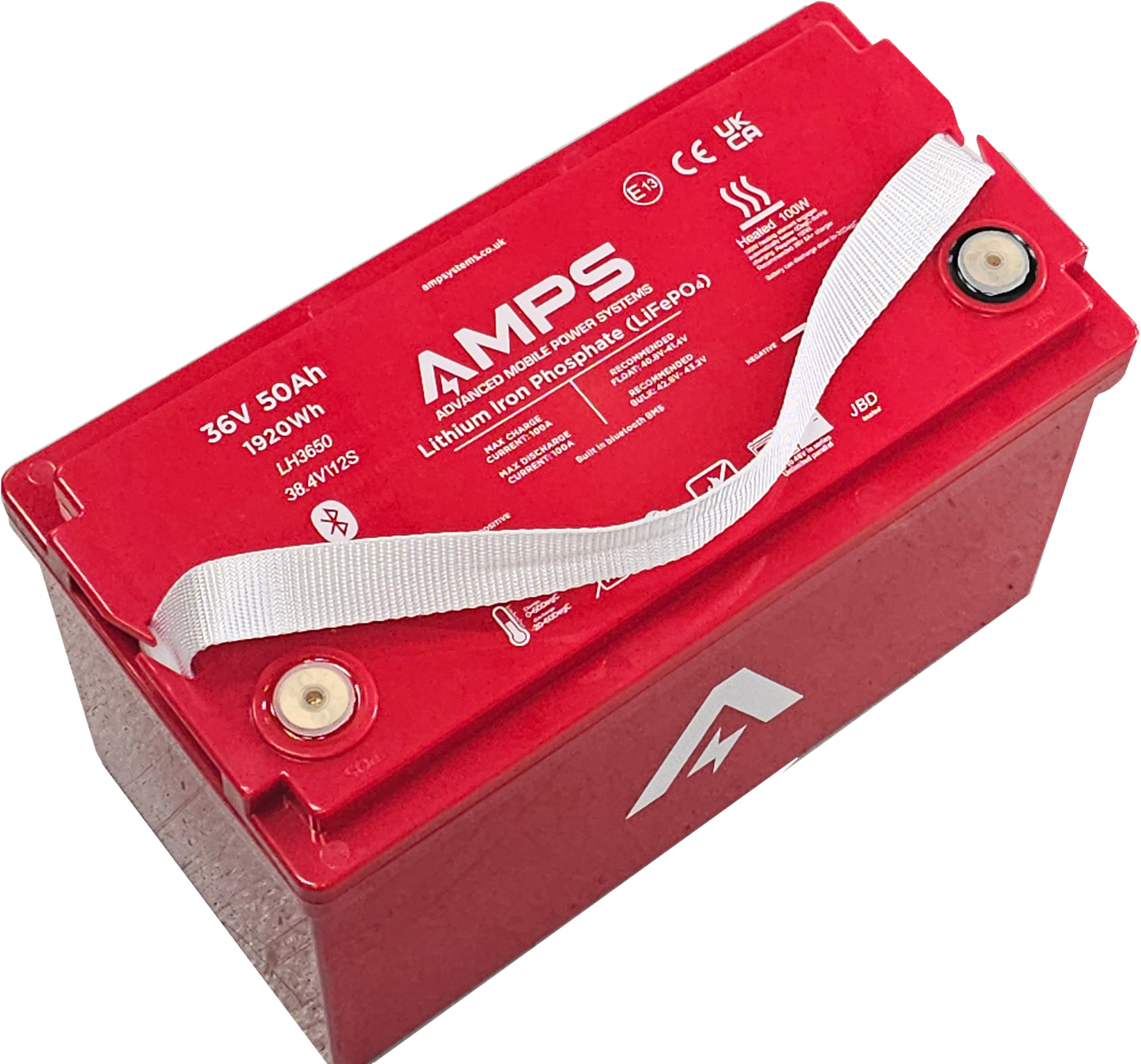

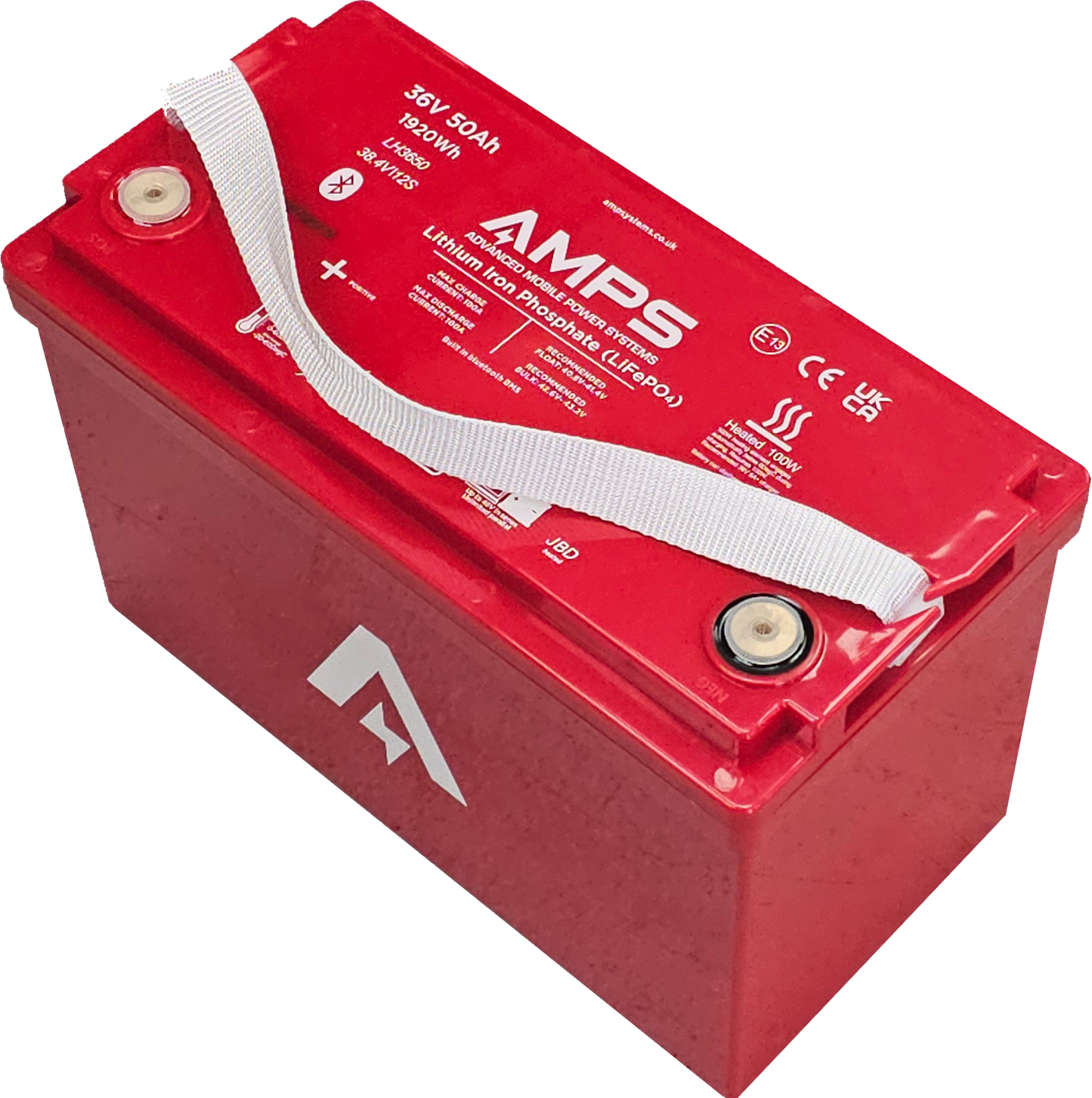

LH3650

£347.76 GBP

Tax included. Shipping calculated at checkout.

Voltage and Capacity

SKU: LH3650

Quantity

Technical Specifications Description Downloads

UID	LH3650
Battery Chemistry	LiFePO4 (Lithium Iron Phosphate)
Battery nominal voltage	36 V
Amphour capacity	50
Watt/hour capacity	1920
Charge limit	100 A
Discharge limit	100 A
Bluetooth	Yes
BMS	Integrated / Included
Integrated protections	Low temperature protections, Low voltage disconnect, Cell imbalance disconnect, Over-current disconnect, Short circuit protection
Terminals	M8
Mass	16.0 kg
App	AMPS BMS
Operating Voltage	38.4 V (12S x 3.2 V)
Warranty	5 Years
Heating	Heated 100 W
DIMS	330 mm, 190 mm, 215 mm

No product family information available.

Battery Capacity	50 Ampere hour (50Ah) \| 1960Wh AL3650

Nominal Voltage	36V
Heating Element	yes, 105W

Battery Chemistry	LiFePO4 Chemistry - Prismatic cells

Series Limit	48V

Parallel Limit	Infinite

Dimensions and Weight	52L x 26W x 21H (cm) - 16kg

Operating Temperature	Charge - 0'C to 60'C // Discharge from -20'C to 60'C - Integrated heater for low temperature operation

Operating Voltage	40.8V (12S x 3.4V)

Charge Voltage	42.6V-43.2V, 43.2V recommended

Float Voltage	40.2V-42V, 41.4V recommended

Max Continuous Charge Rate	2C (100A)

Max Continuous Discharge Rate	2C (100A)

BMS Features	Bluetooth interface for battery information
	Low temperature battery disconnect (0'C for charge, -20'C for discharge)
	Over voltage disconnect (44.4V or above on input)
	Low voltage disconnect
	Cell imbalance disconnect (Cell voltage differential of above 0.3V)
	Automatic cell voltage balancing
	Over current disconnect protection
	Short circuit protection


Operational Quiescent Current	10mA

Standby Quiescent Current	0.1mA



Charge Curve	Constant Current / Constant Voltage - CC/CV

Terminals	M8

Warranty	5 years
